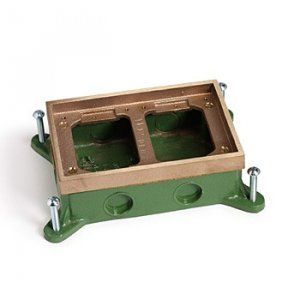

AP-SH-6262-58 Flush Mount Floor Box, in Brass or Aluminum for Concrete Floors

Shallow 2-Gang Flush Mount Floor Box for Concrete

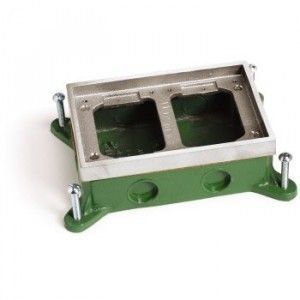

Shallow Flush Mount Two Gang Floor Box for Concrete Floors. Available in Brass and Aluminum also available in our exclusive 38 custom finishes.

This Two Gang Cast Floor Box is Partitioned and Semi Adjustable. These are the two gang floor boxes you should choose. These electrical floor boxes have been around for many years, and they are top-of-the-line floor receptacle boxes, you will love this product.

Product Description

Deep, single gang cast box, fully adjustable

The Arnev Products cast iron floor box with a single gang brass top for concrete is available. The box is fully adjustable and offers 3/8″ of adjustability after it is installed via 4 screws with just a screwdriver. The box is 3.32″ in height for installation, plus 13 cubic inches of interior space. There is a 3/4″ knockout on each side of the box to run your wires. The box ships with a protective cement cover to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a separate carpet flange can be ordered, the Arnev series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.

For Low voltage devices (CAT5-6, Tel, CTV, etc.) Click Here

These are the covers for the box above. You will need one of these covers for each gang opening. Click on the image to see all the specifications and prices, and to add to your cart.

AP-6304-S Floor Box Cover Cover (1/8'' Thick) with 2'' - 1/2'' Combo Plug for Comm./data.	AP-6304-DFB-1 Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-DFB-1-GFI Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Decora receptacles	AP-6304-DFB-1- TEL. for Com/Data. Available in both Brass and Aluminum	AP-6304-DFB-LR Floor Box Cover Dual Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex
AP-6304-DP Floor Box Cover (1/8'' Thick) with (2) 1 1/2'' Screw Plugs for Duplex		AP-CF-1101-DFB Single Gang Brass Carpet Flange, 5 1/2'' X 6 1/2''	AP-CF-1102-DFB Two Gang Brass Carpet Flange, 6 1/2'' X 8 1/2''	AP-CF-1103-DFB Three Gang Brass Carpet Flange, 6 1/2'' X 11 1/2'
