This is the size of the USA Standard Decora opening size which we have been making for years.
Recently some companies have made much larger Decora Switches, Rockers, Dimmers, and Duplex Decora Receptacles.
They force you into buying and using their plastic switch plate covers.
We can make the opening to fit these larger sizes, but there is an extra charge for these new sizes from Hubbell, Lutron, Leviton, and others.
So please check your measurements, and we need to know if you are using some of these larger devices before we start to manufacture your wooden switch plate covers
Screwless wood switch plate sizes
Single size is 5-3/4" tall by 3-1/2" wide
Double size is 5-3/4" tall by 5-3/4" wide
Triple size is 5-3/4" tall by 7-1/2" wide
Quad size is 5-3/4" tall by 9’’ wide
If you have a question about what you are ordering, just give us a call, as there are no returns on these custom screwless wallplates if you order incorrectly. If there is a problem with our manufacturing, we will remake them or correct the problem at no charge.
If you don't see the configuration you need, we can customize a plate for you with the locations of the receptacles or switches in the exact order that you need for the locations on the plate cover. So give us a call at 800-260-1181, and we can discuss this with you.

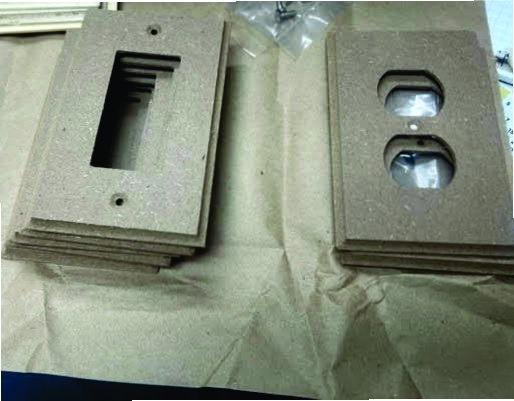

Also available in MDF simulated wood for a very smooth paintable finish.
(shown with screws)

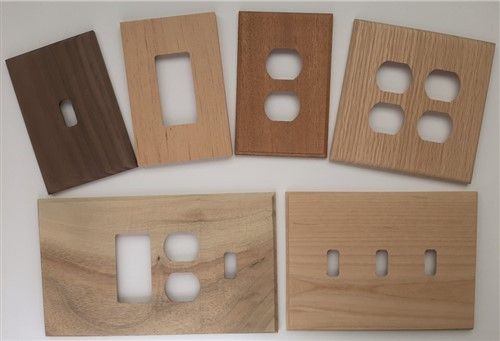

ALL CONFIGURATIONS ARE AVAILABLE FOR UP TO 4 GANGS IN OUR HANDCRAFTED SWITCH PLATES IN UNFINISHED WOOD

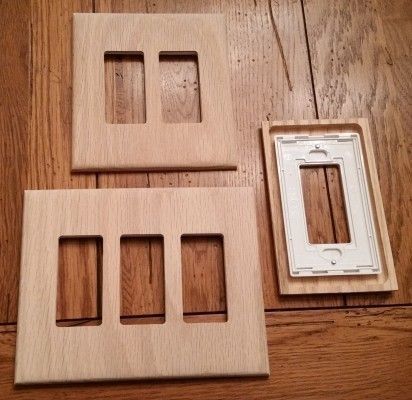

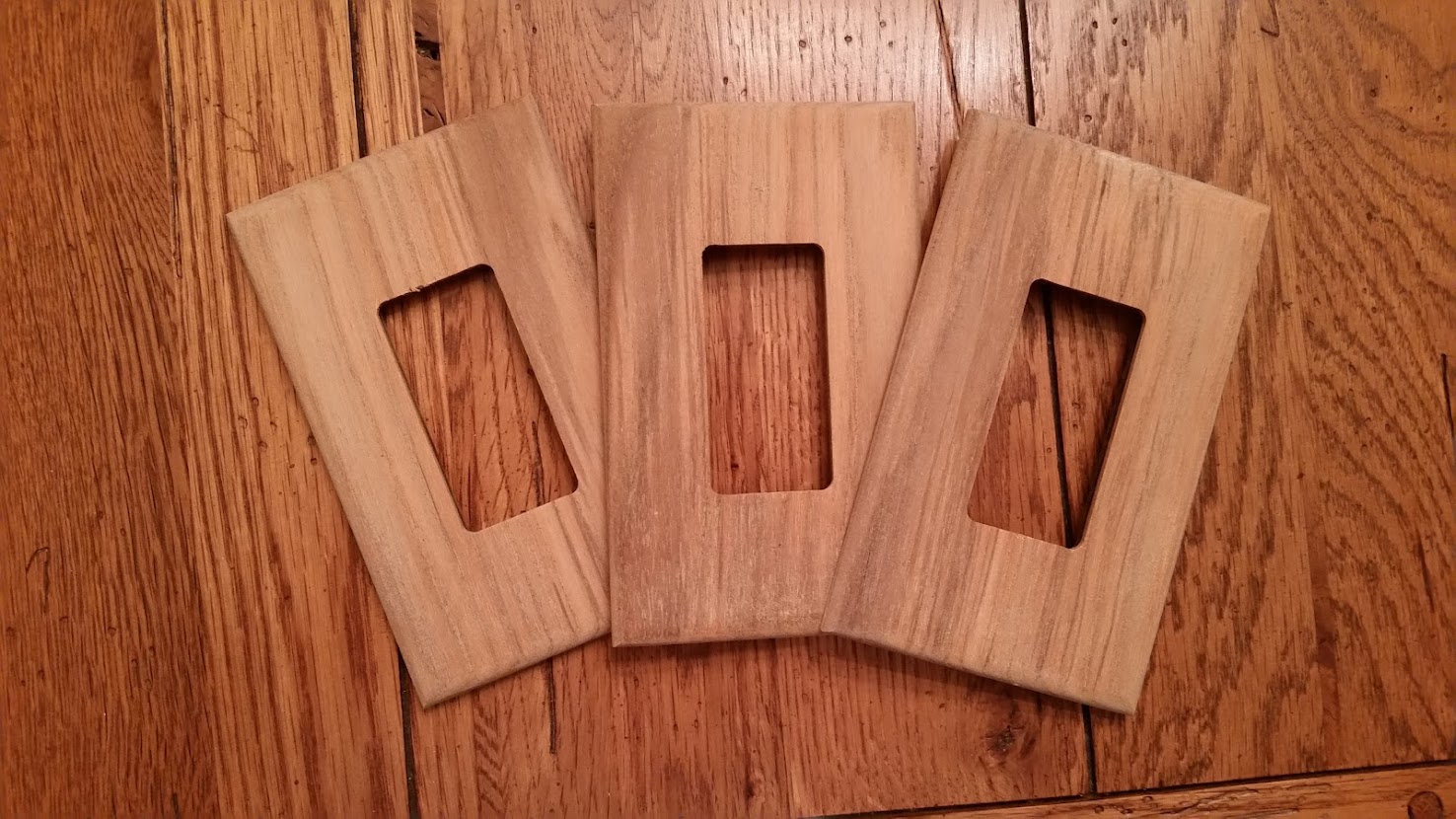

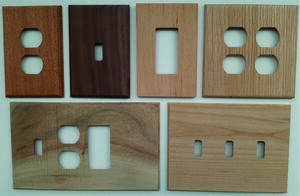

Custom screwless unfinished wood switch plates are now available in all configuration styles in single, double, triple, and quad sizes. Available in 95 wood types from around the world. Check these out, they are fantastic.
Please Note: All screwless wallplates are 1/2 inches wider, and 3/4 inches taller than our standard sizes in one-two-three and four gang plates. This is to accommodate the necessary backing structure needed for this type of installation.
All custom wood sizes are about 1/4 inch thick, much like a regular plastic switchplate.
We supply everything necessary to make them fit your electrical box in the wall. Both the fitting that mounts to the box and the fitting that is mounted to the wall plates, we supply everything!
Here are all 95 wood types available at this time. For other wood types, please give us a call at 800-260-1181
There are no returns on the screwless wallplates as they are all custom-made to order. If there is a problem, we will correct the problem or make you new wallplates.
To see the color of our unfinished woods, or to order these in our regular size with screws, please click on the pictures below to take you to the ordering page.
SCREWLESS SWITCH PLATES INSTALLATION INSTRUCTIONS
See the installation video Here

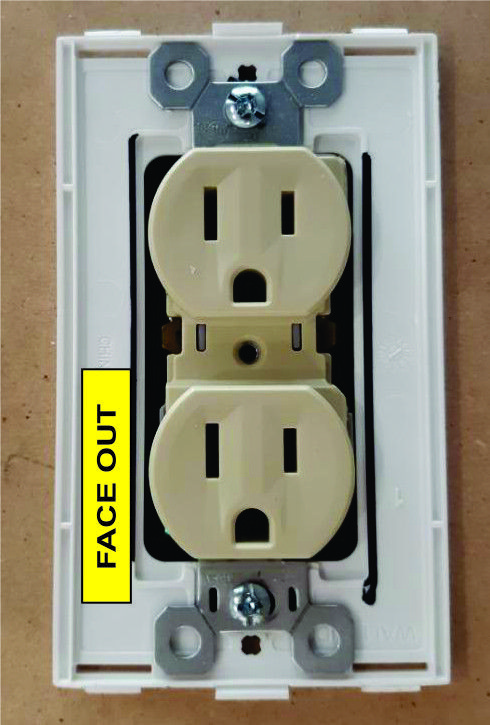

WHEN YOU RECEIVE YOUR SCREWLESS WALLPLATES, THERE WILL BE A WHITE WALL HOUSING THAT IS IN TWO SECTIONS, MARKED FACE THE WALL, AND FACE OUT. THIS IS VERY IMPORTANT, AS THESE WHITE WALL HOUSINGS NEED TO BE IN THE RIGHT DIRECTION FOR THESE TO BE SNAPPED TOGETHER WITH THE WHITE SECOND PART OF THE WALL HOUSING THAT IS ATTACHED TO THE BACKS OF THE WOOD WALL PLATES.
TO GET THE ELECTRICAL DEVICE AS FAR TO THE FRONT OF THE FACE SIDE OF THE WOOD SWITCH PLATE, IT IS IMPORTANT TO SLIDE THE WHITE HALF OF THE WALL HOUSING INTO THE BACK OF THE ELECTRICAL DEVICE. HERE IS HOW THIS IS DONE.
1. FIRST TURN OFF THE POWER TO THE ELECTRICAL DEVICE.
2. COMPLETELY REMOVE THE SCREW OR SCREWS THAT HOLD THE TOP PART OF THE ELECTRICAL DEVICE TO THE BOX IN THE WALL (THESE ARE USUALLY THE TOP SCREWS) AND SET THEM ASIDE.

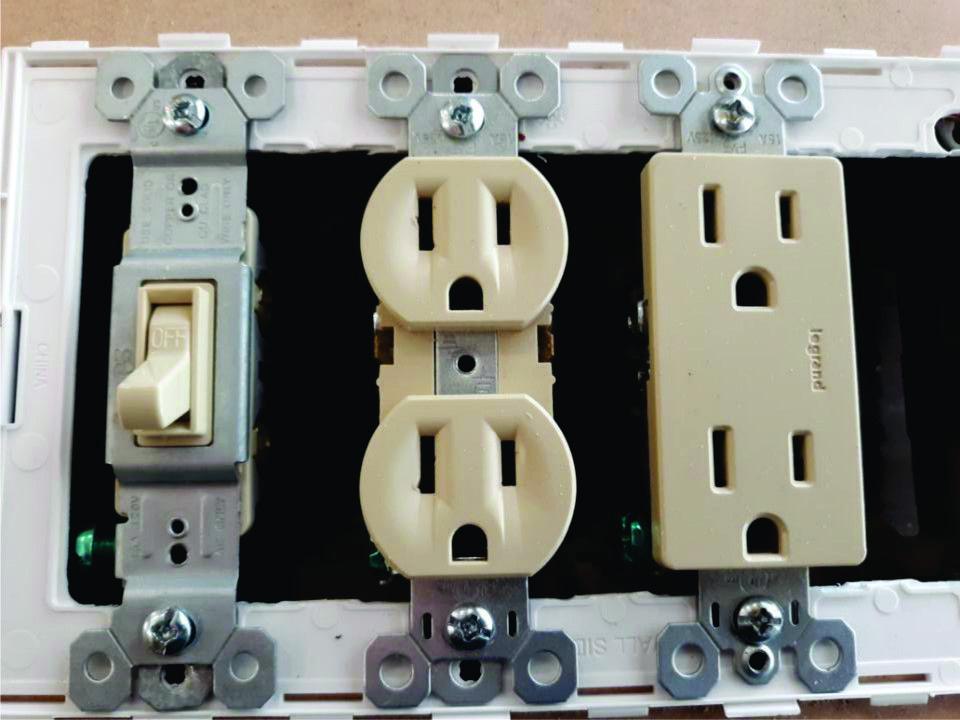

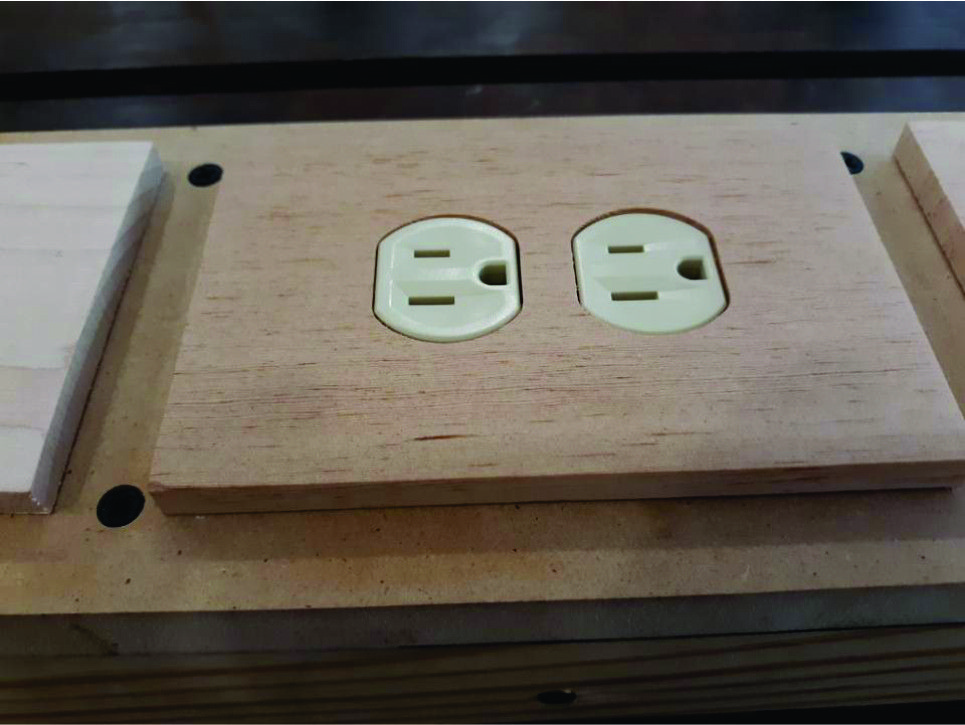

3. NOW LOOSEN THE OTHER SCREW OR SCREWS, SLIDE THE WHITE WALL HOUSING TOP SECTION IN THE BACK OF THE AREA WHERE YOU TOOK OUT THE SCREW FROM THE ELECTRICAL DEVICE, AND PULL IT DOWN A BIT BEHIND THE ELECTRICAL DEVICE. NOW YOU SHOULD BE ABLE TO SLIDE THE BOTTOM PART OF THE WHITE WALL HOUSING PAST THE ELECTRICAL DEVICE. NOW PUSH THE WHITE WALL HOUSING IN THE BACK OF THE ELECTRICAL DEVICE BY PUSHING IT UP, SO THE WHITE HOUSING IS NOW THE IN BACK OF THE ELECTRICAL DEVICE. THE WHITE WALL HOUSING MAY NEED TO SLIDE LEFT OR RIGHT A LITTLE, TO LINE IT UP WITH THE ELECTRICAL DEVICE. THIS IS HOW THE FINISHED PRODUCT SHOULD LOOK.
OR BACKS OF WOOD

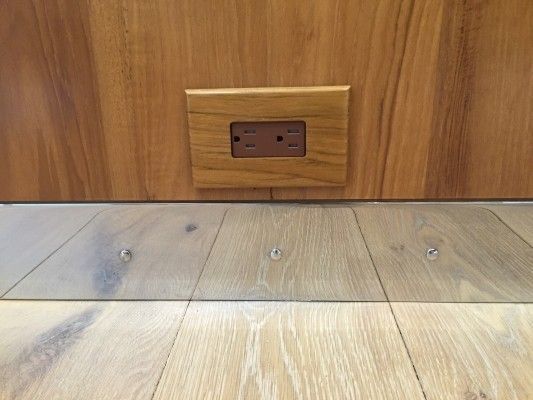

4. NOW THAT THE ELECTRICAL DEVICE IS IN FRONT OF THE WHITE WALL HOUSING, SCREW IN THE SCREW, OR SCREWS THAT WERE REMOVED IN STEP TWO, AND TIGHTEN THEM UP SO THE SCREW CAN NOW GO INTO THE ELECTRICAL DEVICE AND THROUGH THE WHITE WALL HOUSING, AND NOW INTO THE BOX IN THE WALL. THEN TIGHTEN ALL THE SCREWS. YOU ARE NOW READY TO SNAP ON THE WOOD SWITCH PLATE COVER TO THE HOUSING, WHICH IS NOW ATTACHED BEHIND THE ELECTRICAL DEVICE AND MOUNTED TO THE WALL.
LIKE THIS OR ONE OF THESE
WE HAVE A VIDEO OF THIS INSTALLATION THAT IS AT THE TOP OF THIS PAGE, SO PLEASE CHECK OUT HOW WE SUGGEST YOU MOUNT THESE SO THE RECEPTACLE IS AS FAR AS POSSIBLE TO THE FRONT SIDE OF THE FLAT SURFACE FRONT OF THE PLATE. IF YOU NEED SOME HELP, BY ALL MEANS, GIVE US A CALL AT 800-260-1181 AND WE WILL HAVE OUR WOOD CRAFTERS RETURN YOUR CALL AND WALK YOU THROUGH THIS INSTALLATION PROCESS.
