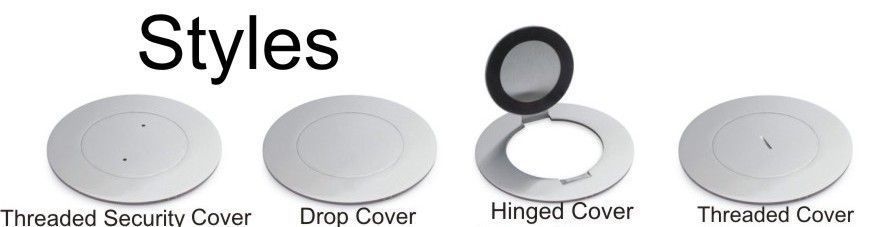

Cover Styles
Connectors and devices and not supplied with the Poke-through floor boxes.
There are several devices that will work for any of these Poke-through floor boxes
* About Delivery of Poke-through floor boxes
These boxes are all custom-made to order to our customer's specifications, and are manufactured, polished, and assembled in our Canadian factory. Then they are shipped to you directly from our factory in Canada, and because of customs clearance, nothing can be shipped overnight, but once the order is complete, it can be shipped UPS RED, but you will need to call 800-260-1181 to pay the extra shipping and request that service. This usually takes about 7 to 10 working days, depending on the size of the order. Brass and black finishes can take about 6 weeks to manufacture and ship to you. Also, there is a minimum order of 10 units with black finishes only.
Since all of these Poke-Through boxes are custom-made units, they are non-returnable, so please make note of this.
Why choose our Poke-Throughs

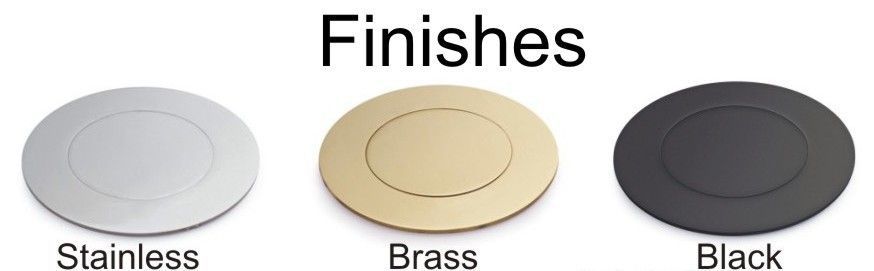

Q: What finished do they come in?
A: Stainless Steel, Brass (quotes only per brass current market price), and Black (minimum order 10 or more only)
Q: How long is the fire rating?
A: Two hours
Q: What lengths do the poke-throughs come in?
A: 12”, 14”, 16”, & 20” (standard lengths)
Q: What is the maximum floor thickness for the poke-through?
A: Various lengths to accommodate all construction requirements.
Q: What approvals?
A: UL and CSA
Q: Do you have shop drawings?
A: Yes, available online at www.arnev
Q: How close together can poke-through devices be located?
A: When designing a poke-through installation no more than one poke-through is allowed per 65 square feet of floor area and two poke-throughs can not be located closer than 2 feet to each other. Also, abandoned poke-throughs will count as part of the 65 square feet and 2-foot minimum spacing. It is not an NEC code but rather a UL requirement for fire safety. This UL requirement is covered under Fire Resistance Directory (sometimes called the UL Orange Book). Pokethroughs fit under the category of Outlet Boxes and Fittings Classified for the Fire Resistance section (CEYY)
Q: Can I get special plugs put in it?
A: Yes, depending on what kind of plug or jack it is. Note the jack or specifications must be sent to us prior to the order being processed.
Q: Are jacks included?
A: Not as a standard because typically communication contractors supply and install to fulfill their contractual and warranty obligations. However, they are available upon request.
Q: What kind of jacks can you use?
A: Any jacks, as long as they are the keystone style
Q: How are the units wired?
A: Poke through unite are wired from the bottom threaded openings.
Q: Can you run pipe and wire to it?
A: Yes, there are KOs or threaded hubs on the various units.
Q: What kind of construction can they be used for?
A: New or Retrofit
Q: Can it be used in Q-Deck?
A: Yes. Note that it is very important to know the profile of the floor for quoting and ordering information.
Q: How many circuits? And, what are they rated?
A: Up to 4 circuits for 20A. For a special application contact us.
About Poke Throughs
MULTICONNECT is a multi-use flush-to-floor outlet that provides easy access to power, voice, and data connections in the unobstructed flush-to-floor required applications. The attractive appearance and innovative design create option flexibility and functionality. Using a four-inch core drill eliminates costly labor-intensive saw cutting, chiseling/regrouting of a square hole. Future removal and re-installation are easily accomplished if required.
Highlights:
