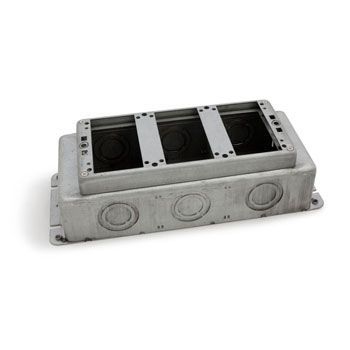

AP-1103-SMB Three gang, deep stamped steel floor box

3-gang deep stamped steel floor box, for concrete floors

3-gangs deep stamped steel floor box for concrete floors. Dim: 3 3/8 H x 11 1/16 L x 4 11/16 W; 38.3 Cu. In. per gang. Knock-out holes on the bottom.

Product Description

Three-gang, deep stamped steel floor box

For Low voltage devices (CAT5-6, Tel, CTV, etc.) You will need either a Tile Frame or Carpet Flange for this box, so please choose one (1 only), and then choose a finish (Brass or Aluminum).

Arnev stamped steel floor box with a three-gang opening for concrete floors. The box is fully adjustable with just a screwdriver offering 2 1/4″ of pre-pour adjustment, and 1/2″ of post-pour adjustment. The box is deep offering 38.3 cubic inches of interior space per gang. There are several 3/4″, 1″, and 1.25″ knockouts on the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a separate carpet flange can be ordered, the Arnev series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile or carpet applications using a flange, make sure that the floor box is 3/8″ lower than the concrete pour, if you are not using a flange simply pour your concrete to the top of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.

Tile Frame (for tile floors)

Click on the image to order

Three gangs, brass, or aluminum tile frame
Dim: 9 5/16 L x 4 5/16 W

Carpet Flange (for carpeting)

Click on the image to order

Three Gang Brass or Aluminum Carpet Flange,

6 1/4 X 11 1/8

These are the available covers needed for these boxes, so click on the cover you would like to order.

Click on the picture to take you to that product's page to order.

	AP-6304-DFB-1 Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-DFB-1-GFI Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Decora receptacles	AP-6304-DFB-1- TEL. for Com/Data. Available in both Brass and Aluminum	AP-6304-DFB-LR Floor Box Cover Dual Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex
AP-6304-DP Floor Box Cover (1/8'' Thick) with (2) 1 1/2'' Screw Plugs for Duplex
