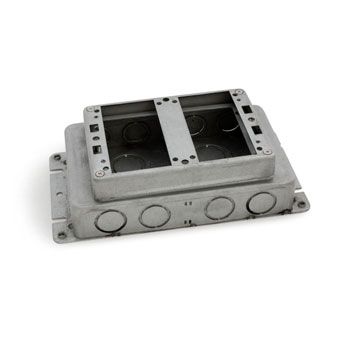

AP-SH-1102-SMB Two gang, shallow stamped steel floor box

Two-gang, shallow stamped steel floor box for concrete

Two-gangs, deep stamped steel floor box Dim: 2-9/16 H x 7-7/8 L x 4-13/16 W; 33.5 Cu. In. per gang. Knock-out holes are also on the floor boxes' bottom.

Product Description

Two gang, shallow stamped steel floor box

You will need either a Tile Frame or Carpet Flange for this electrical floor box, so please choose one (1 only), and then choose a finish (Brass or Aluminum).

The Arnev shallow floor box is a stamped steel concrete floor box with a two gang opening. The box is not adjustable, no adjustments can be made after the concrete is poured. The box is a shallow style box, perfect for concrete 2.5″ to 3″ in depth. The box offers 33.5 cubic inches of interior space per gang. There are several 3/4″, 1″, and 1.25″ knockouts on the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a separate carpet flange can be ordered, the Arnev carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile or carpet applications using a flange, make sure that the floor box is 3/8″ lower than the concrete pour, if you are not using a flange simply pour your concrete to the top of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.

For Low voltage devices (CAT5-6, Tel, CTV, etc.) Click Here

Tile Frame (for tile floors)

Click on the image to order

One gang, brass, or aluminum tile frame
Dim: 6 3/8 L x 4 3/8 W

Carpet Flange (for carpeting)

Click on the image to order

Single Gang Brass or Aluminum Carpet Flange,

6 1/4 X 8 1/4

Covers are needed for these boxes, so click on the cover you would like to order.

Click on the picture to take you to that product's page to order.

AP-6304-S Brass only Floor Box Cover Cover (1/8'' Thick) with 2'' - 1/2'' Combo Plug for Comm./data.	AP-6304-DFB-1 Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-DFB-1-GFI Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Decora receptacles	AP-6304-DFB-1- TEL. for Com/Data. Available in both Brass and Aluminum	AP-6304-DFB-LR Floor Box Cover Dual Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex
AP-6304-DP Floor Box Cover (1/8'' Thick) with (2) 1 1/2'' Screw Plugs for Duplex
