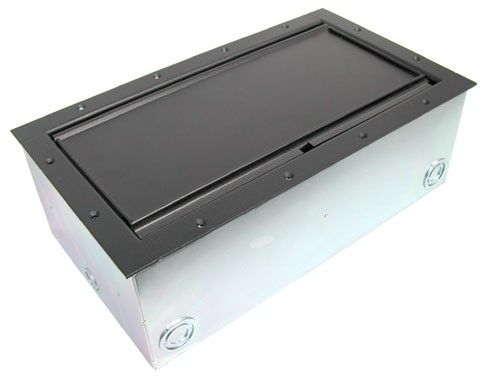

Super couble wide AV floor stage box for concrete or wood floors in many finishes and many connectors available
Next image
Zoom image

Super Double-Wide Audio-Video Floor Box/8 power/24 LV

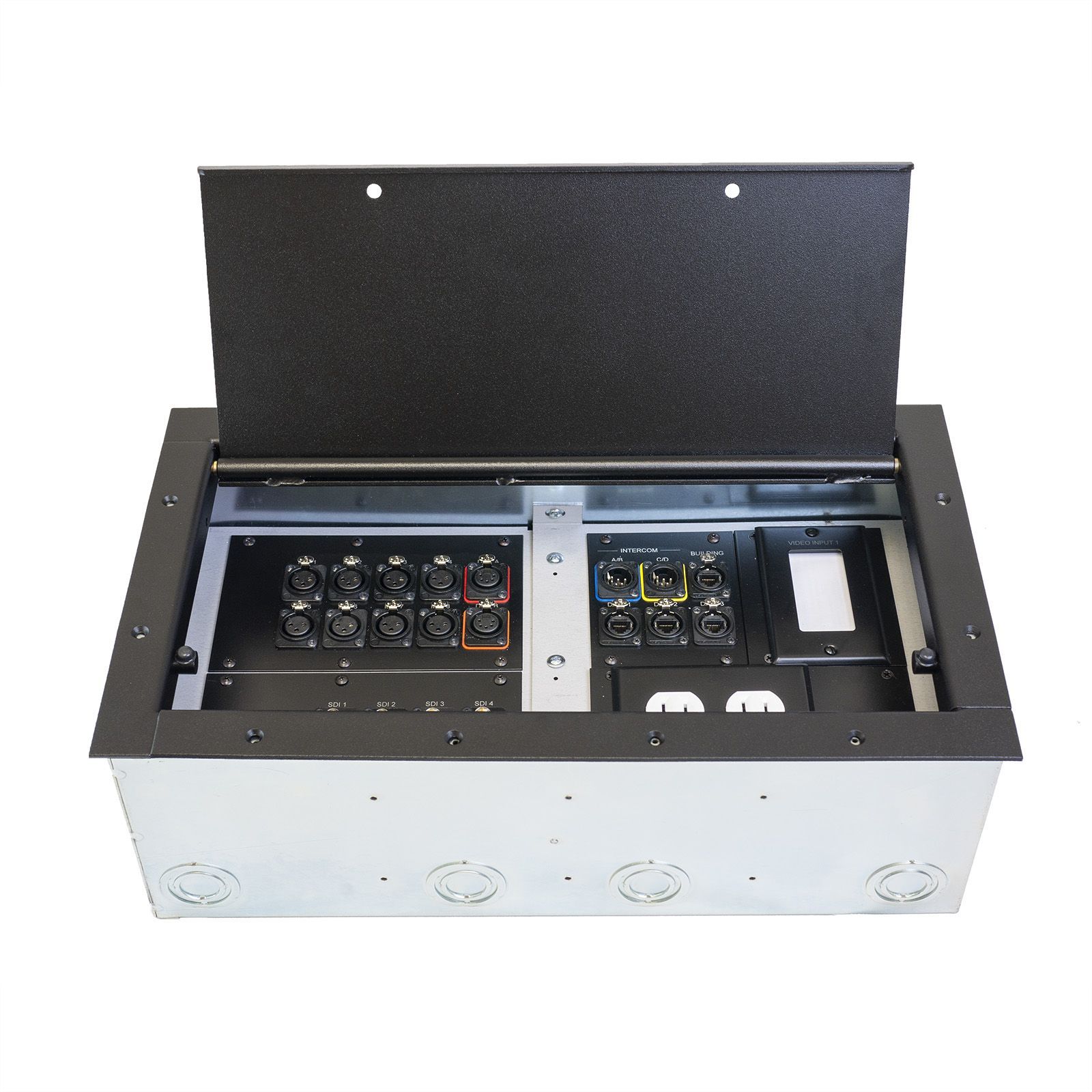

Super-double wide Audio Video floor box with room for up to 8 duplex receptacles, up to 48 low voltage devices, or the combination of all these devices.

Click here to order all the Audio-Video Connectors Available


THIS PRODUCT IS MADE IN THE USA




  • $1096.87










Qty:
  • SKU
    Super Double Wide AP-134SLBK

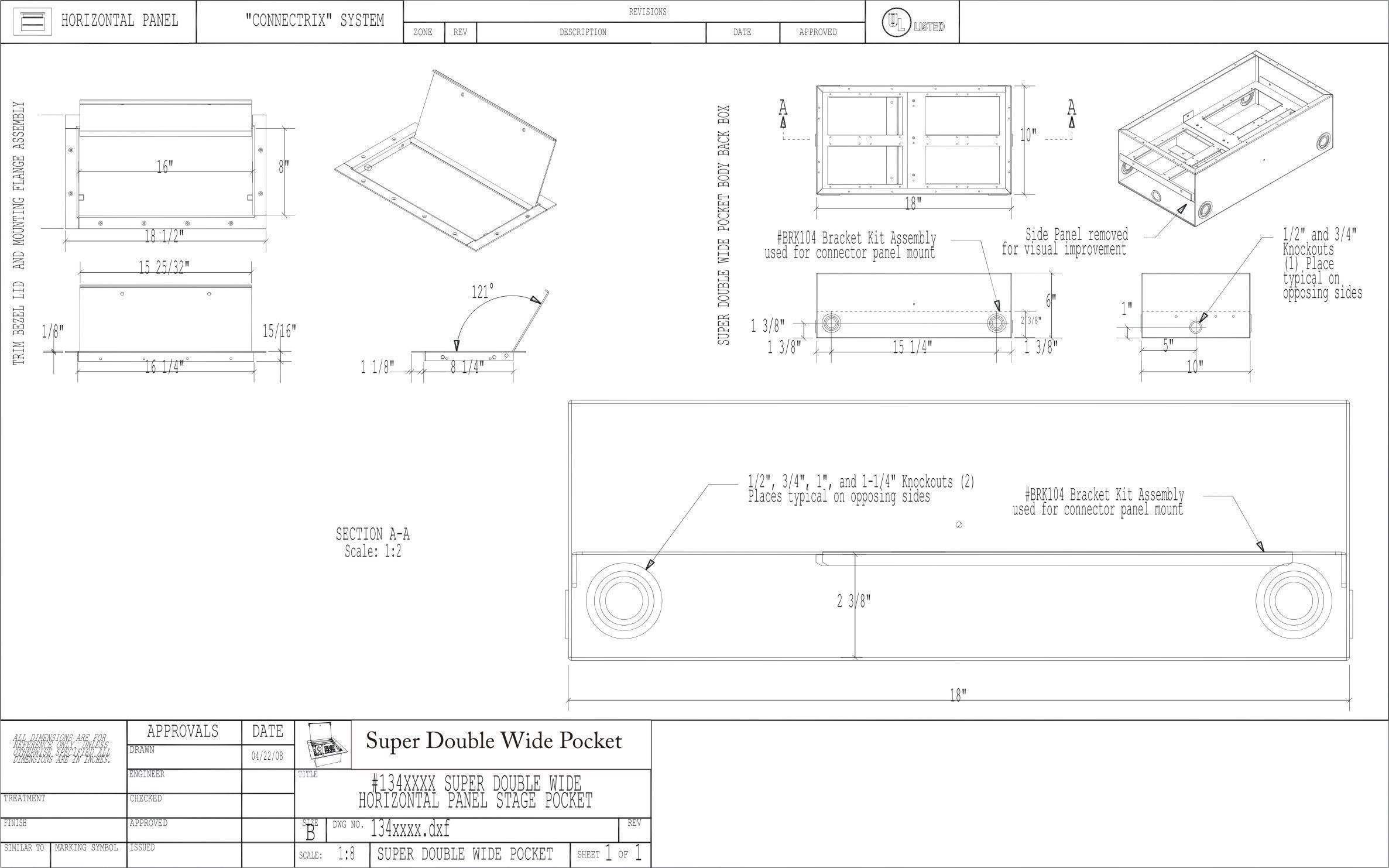

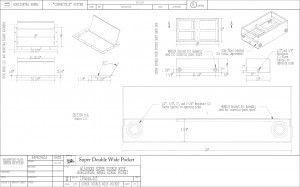

The floor box lid will close and chords stick out of this floor box. This has a second small door that lifts and closes shut when not in use to prevent it from getting stuck. With many color choices and floor boxes for wood or concrete floors. These custom-order AV boxes are not returnable or refundable, so please double-check your order by seeing the cut sheet below or at the left side top to make sure this will work for your application. These audio video floor boxes are top-of-line products.


This has a second small door that lifts and closes shut when not in use to prevent your heel from getting
stuck in the opening. For wood or concrete.
The Super Double Wide Stage Pocket has the panel capacity for either:
• (8) #PNL-100 Series "Connectrix" Panels or
• (8) #PE Series Single Gang Electric Duplex Switch Box Panels or
        any combination of the PNL-100 and the #PE Panels

The Super Double Wide Stage Pocket has the connector capacity for either:
• (48) "Connectrix" Connectors or
• (48) Neutrik® Connectors or
• (48) Switchcraft® Connectors or
• (50) "Connectrix" Connectors (using the #PNL-1425 Panel w/ center bar breakout)*


CLICK HERE TO ORDER ALL THE AVAILABLE CONNECTORS, GO HERE. AVAILABLE CONNECTORS.




Arnev Products, Inc's., extra-large capacity uses Super Double Wide Horizontal Panel Stage Pockets that are the same size as the Arnev Double Wide Pockets with Back Box except they provide almost 2X the "Connectivity" capacity using a Horizontal Panel Design. The basic construction incorporates 3 sub-assemblies: 1) A unique Trim-Bezel lid assembly with spring-loaded hinge pins, 2) Two hinged cableway slot closures that mount directly to the Pocket Body Back Box, 3) A set of panel mounting brackets installed in the Super Double Wide Pocket Body Back Box (#BRK102BBX Back Box).

The Super Double Wide Pocket features welded heavy-duty steel construction, a choice of 2 decorator oven-cured powder coat finishes (for the trim-bezel lid assembly), 2 lid choices (Standard Lid (SL) and Carpet Lid (CL)), plus solid brass or solid stainless steel trim bezel lid assembly finishes. Add a host of stock prefabricated or custom audio, communications, control, data, electric, video, and voice panels and connectors for a complete Stage Pocket System. The in-floor appearance is the same as the Double Wide Pocket.

All Arnev Super Double Wide Stage Pockets Trim-Bezel Lid assemblies are heavy-duty welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange. The 14 ga. (.071") thick CRS steel Super Double Wide Pocket Body Back Box is precision die formed and jig welded. The Super Double Wide Stage Pocket resists bending under even the most severe stage loads.

Removable spring-loaded hinge pins permit the easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 16" permits easy cable exit from the stage pocket, even for large gauge cables. Two attached cableway slot channel closures close the slot when not in use. The Super Double Wide Stage Pocket has an easy installation into a 10" x 18" cutout on the stage floor. Open easy access from the top of the Super Double Wide Stage Pocket to connector panels makes for easy installation.

A scratch/wear-resistant finish, oven-cured powder coat is electrostatically applied inside and outside the entire trim-bezel lid assembly. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange, as well as a Solid Stainless Steel Lid and Mounting Flange, are also available by special order. The Super Double Wide Pocket Body Back Box comes with a clear zinc finish (Mil-Spec QQ-Z-325E Type I, Class II).

The Super Double Wide Stage Pocket's solid rubber Lid Stops cradling the lid to prevent lid rattle.

Utilizing Arnev's "Connectrix" System will allow mounting of up to 50 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors* in the Super Double Wide Stage Pocket. The Horizontal Panel Design in the Super Double Wide Pocket is designed for extra high-capacity connectivity. In less than two square feet (10.5”x18.5”) the Super Double Wide Pocket provides abundant panel space for up to 50 "Connectrix" connectors*. Generous combination conduit knockouts on four sides provide in-out-and-thru ways for both low voltage and AC electric cabling. Generous clearances above and below the panel(s) permit easy termination and access to an array of audio, video, data, communication, and control connections.

Arnev's Super Horizontal Panel Stage Pocket Systems offer "Connectivity" Solutions with a flexible, reliable, and simplistic design. The flexible design of the Super Double Wide Horizontal Panel Stage Pocket Lid and Mounting Flange along with the Super Double Wide Pocket Body Back Box, when used in combination with Custom and Prefabricated Aluminum "Connectrix" (Neutrik®/Switchcraft® combo cutout) Panels, Switchcraft® Panels, and our large selection of "Connectrix" (Neutrik®/Switchcraft® combo cutout), Switchcraft®, and Custom Connectors allow the Stage Pockets to be installed in many different applications. These applications include educational, institutional, and liturgical settings. Within these applications various audio, communications, control, data, electric AC power, video, and voice terminations are possible, allowing for a complete Stage Pocket System.

Arnev's Horizontal Panel Stage Pockets are available in two sizes (Super and Super Double Wide Stage Pockets) making them flexible in both form and function and able to meet your requirements. All Super Horizontal Panel Stage Pockets are UL Listed. *Note: Connector capacity limitations apply depending on the connectors and panels used.





Sales Taxes please note:  All our AV boxes are shipped directly to you from our California facility and if you are having the box shipped to you in California we will be calculating the sales tax needed for the transaction.  By law, we are required to charge and pay California sales taxes when a product is shipped to a customer in California.
  • Step #10. Wood Floor, or a Concrete Pour
    Wood Floor, Concrete Floor (6 inch new concrete pour), Concrete Floor (8 inch new concrete pour (BRK104-8BBX)
  • Choose Small Panel #1 ---- EIGHT PANELS NEEDED FOR THIS BOX.

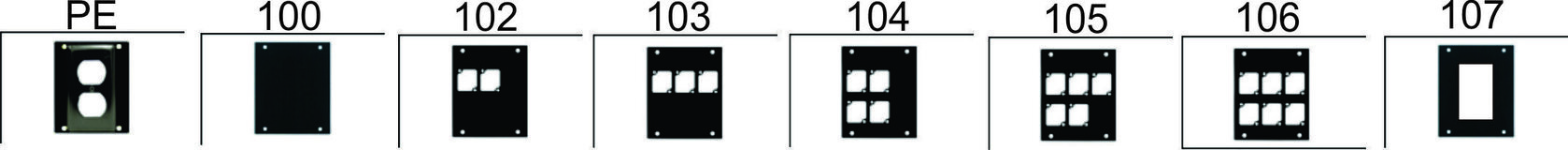

    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #2 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #3 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #4 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #5 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #6 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #7 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Choose Small Panel #8 ---- 8 PANELS NEEDED FOR THIS BOX.
    #PE small panel for duplex A/C, #PNL-100 small blank panel, #PNL-102 small panel, #PNL-103 small panel, #PNL-104 small panel, #PNL-105 small panel, #PNL-106 small panel, #PNL-107 Decora type panel
  • Step #9. Choose a finish:

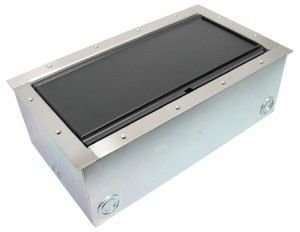

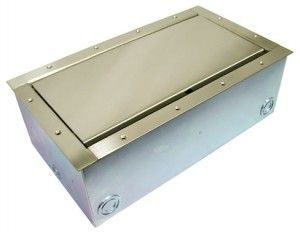

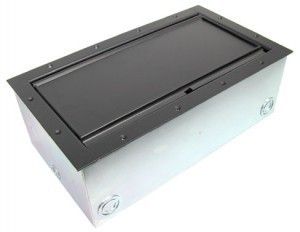

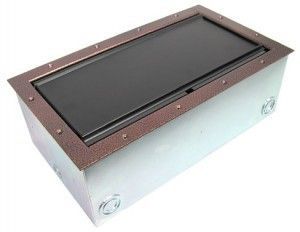

    Black Finish Standard Lid (134-SLBK), Black Finish Carpet Lid (134-CLBK), NOTE: THE PRODUCTS BELOW ARE ALL EXTRA PRODUCTS YOU MIGHT WANT TO CHECK OUT, Coppervein Finish Standard Lid (134-SLCV), Coppervein Finish Carpet Lid (134-CLCV), Solid Brass Finish (BR) Standard Lid (234-SLBR), Solid Brass Finish Carpet Lid (234-CLBR), Stainless Steel Finish Standard Lid (334-SLSS), Stainless Steel Finish Carpet Lid (334-CLSS)
