Meets 2023 NEC Electrical Code 406.5E for Installation in Countertops
The pop up meets code for kitchen and wet location installations in counters, it is compliant to the latest 2023 National Electrical Code (NEC) 406.5E for countertop use in the USA and Canada. The receptacle has tamper-proof plugs and is Underwriters Laboratories (UL) listed. The complete pop up unit is ETL listed for USA installations, and cETL and CSA approved for Canada installations. The top features an IP 43 spillproof and dust rating.
1/2 Gallon Spill Protection Against Liquids
The electrical outlet has passed UL’s 1/2 gallon spill test, as well as being UL 498, Section 147 rated to meet 2023 code. There is a gasket on the bottom of the trim ring that sits on the countertop to keep spilled liquid from entering into the hole in the countertop, which in turn, keeps liquid from entering into your cabinets.
340 Degree Rotation
When the pop up is in the up position, you can simply grab the top and rotate the unit left and right to achieve the perfect angle. The pop up rotates 340 degrees so it is pointed in your best possible position for any scenario.

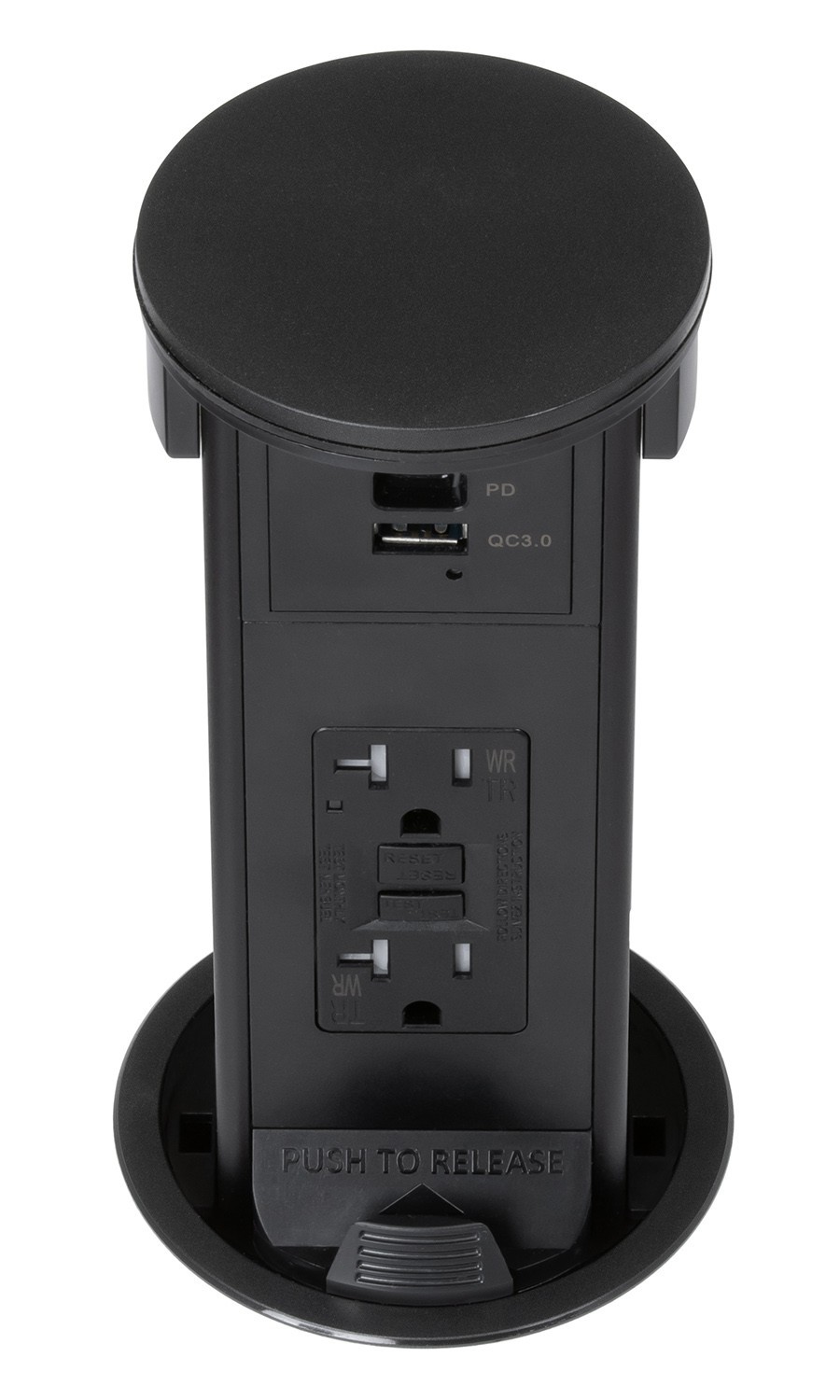

Tamper Proof 20 Amp GFCI Power, USB-A and USB-C Charging, Wireless Qi Charging
The USB-A charging port can deliver up to 30 Watts of quick charging power. QC 3.0 technology can adjust the voltage and safely deliver the maximum amount of power that the device can handle.
The USB-C charging port is designed to be able to charge newer devices at an incredibly fast rate up to 30 Watts. The port is not only QC 3.0 rated, but also PD 2.0 rated. With integrated Power Delivery charging not only can you charge phones and tablets, but also laptops.

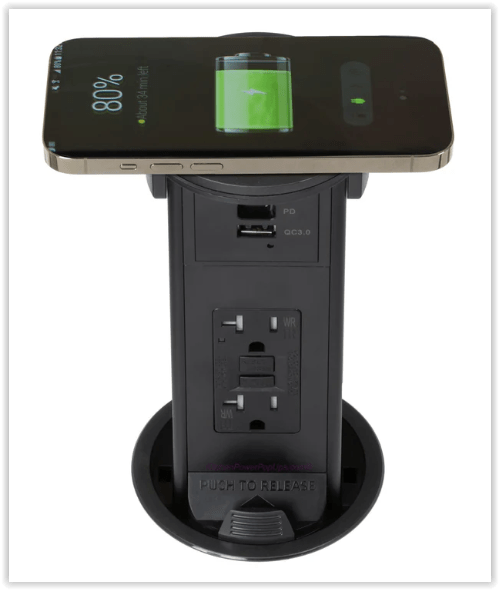

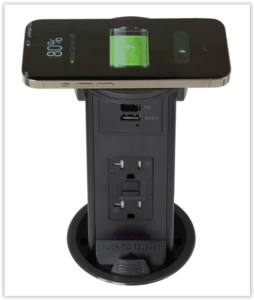

The top offers QI wireless charging, simply set a QI enabled smartphone on the top to start charging, the charging works in both the open, and closed position. The top offers super fast charging up to 15 watts of power. The top is case friendly, and will wirelessly charge through any non-metal phone case up to 5mm thick. Your smartphone can still be used while it is charging. The wireless charging is certified safe with integrated over-voltage protection, and temperature control.
The wireless charging feature will work with any phone that has QI charging technology, including the most popular phones such as the iPhone 8 and above models, Samsung Galaxy 6 and above, and Samsung Note 5 and above. The top is plastic because wireless charging will not work through metal, rest assured that the plastic is extremely durable and scratch-resistant.
The two plugs are tamper resistant (TR) meeting code, and offer the peace of mind knowing that children can't put small objects into the sockets and electrocute themselves. The plugs are rated for 20 Amps, you can plug in the most demanding small appliances ensuring that the outlet won't trip. The plugs are backwards compatible with 15 Amp plugs, meaning you can plug in a 15 Amp plug into the 20 Amp socket. The GFCI outlet ensures safety at the device, if the outlet senses any issues it will trip the power internally to the outlet.
Easy Installation - Cut the Hole and Hardwire
This pop up grommet couldn’t be any easier to install for a stone fabricator and electrician. The in-counter outlet only needs a 3.75” round hole cut in the countertop. After placing the unit in the hole, secure to the underside of the counter with the included threaded flange. The threaded flange is 4.52" in diameter, so plan accordingly when cutting the hole, ensuring there is enough space to thread on the flange. To power, the included 5' cord needs to be connected to a junction box (not included).
Convenient Hidden Power and Charging Solution Where You Need It
The pop up outlet is perfect for any countertop location, as well as kitchen islands. It can be used in potentially wet locations requiring recessed power such as pantries, closets, garage work benches, bars, and varied uses at airports, hotels and restaurants. Use the pop up power strip to power small appliances such as coffee makers, blenders, toaster ovens, warming trays, and other items. It can also be used for charging mobile devices such as tablets and phones via the two USB charging ports. Up to 4 devices can safely be plugged in at once, 5 if you count wireless charging. The pop up can be installed in granite, quartz, marble, wood, laminate, concrete, or any surface up to 2 3/16” thick, where the required 3.75” hole can be cut.
With the pop up outlet, get power and charging exactly where it is desired in your counter, while meeting electrical code, and keep dangerous cords from hanging over the sides of counters.
Specifications:
Color: Black
Plastic ring, plastic middle top
Outlet: 20 Amp GFCI, 2 charging USB
USB-A: QC 3.0 rated, 30W
USB-C: PD 2.0 rated, 30W
Qi wireless charging top, 15 watts
340 degree rotation
Tamper resistant (TR) plugs
Meets 2023 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 498, Section 147
UL listed receptacle, # E491706
Water protection closed: IP43 rated
Water protection open: 1/2 gallon spill rated outlet
Gasket under bezel to keep water out
Bezel size: 3.98” round
Bezel thickness: .1"
Cutout size: 3 3/4” round
Pop up height: 7.14”
Middle top diameter: 3.32"
Depth under 3cm counter: 13"
Works in counter thickness: 3/8” - 2 3/16”
Flange width needed under counter: 4.52"
5’ cord needs to be hardwired to junction box
Junction box not included
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
RoHS and Proposition 65 compliant
2-year warranty
