Half Pocket AV stage and floor box for connectors and power

Half Pocket Audio-Video Floor Box/duplex or low voltage

Half-Pocket Audio-Video floor box with room for up to one duplex, or six low-voltage devices.

Click here to order all the Audio-Video Connectors Available

THIS PRODUCT IS MADE IN THE USA

Step #1. Choose only 1 Panel, or PE
Step #2. Choose the style, Standard or Carpet Flange
Step #3. Choose a finish:
Step #4. Please choose for Wood, or Concrete pour type.

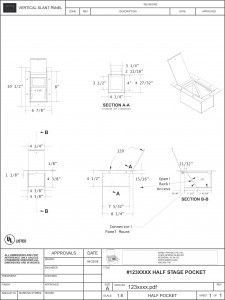

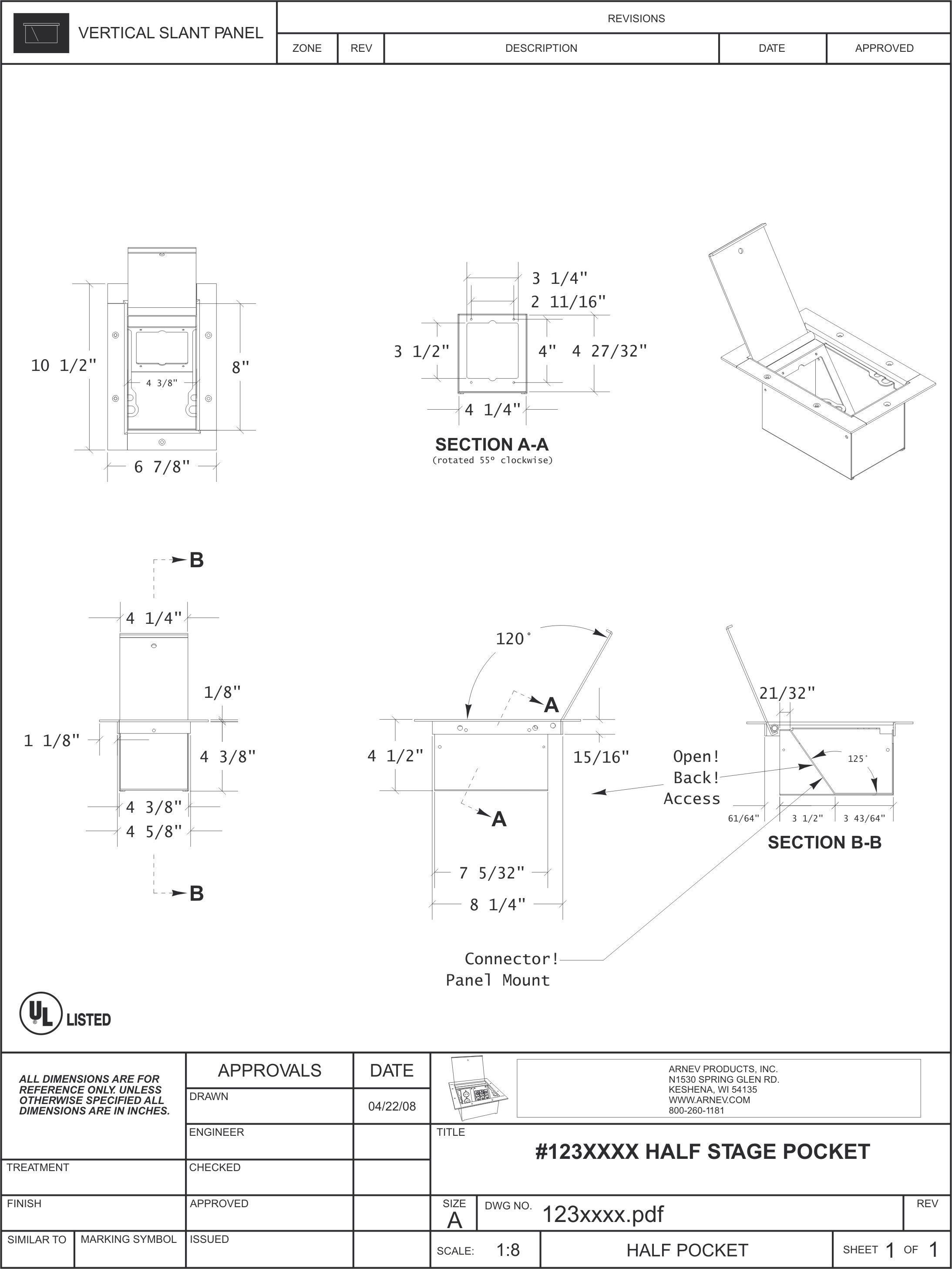

The floor box lid will close, and the cords will come out of the front section. This receptacle floor box has a second small door that lifts and closes shut when not in use to prevent your heel from getting stuck in the opening. These custom-order Audio-Video boxes are not returnable or refundable, so please double-check your order by seeing the cut sheet below or at the left side top to ensure this will work for your application. These audio video floor boxes are top-of-line products.

Also available with Carpet flange covers in all finishes, so see detailed images above.

Click here to order all the Audio-Video Connectors Available

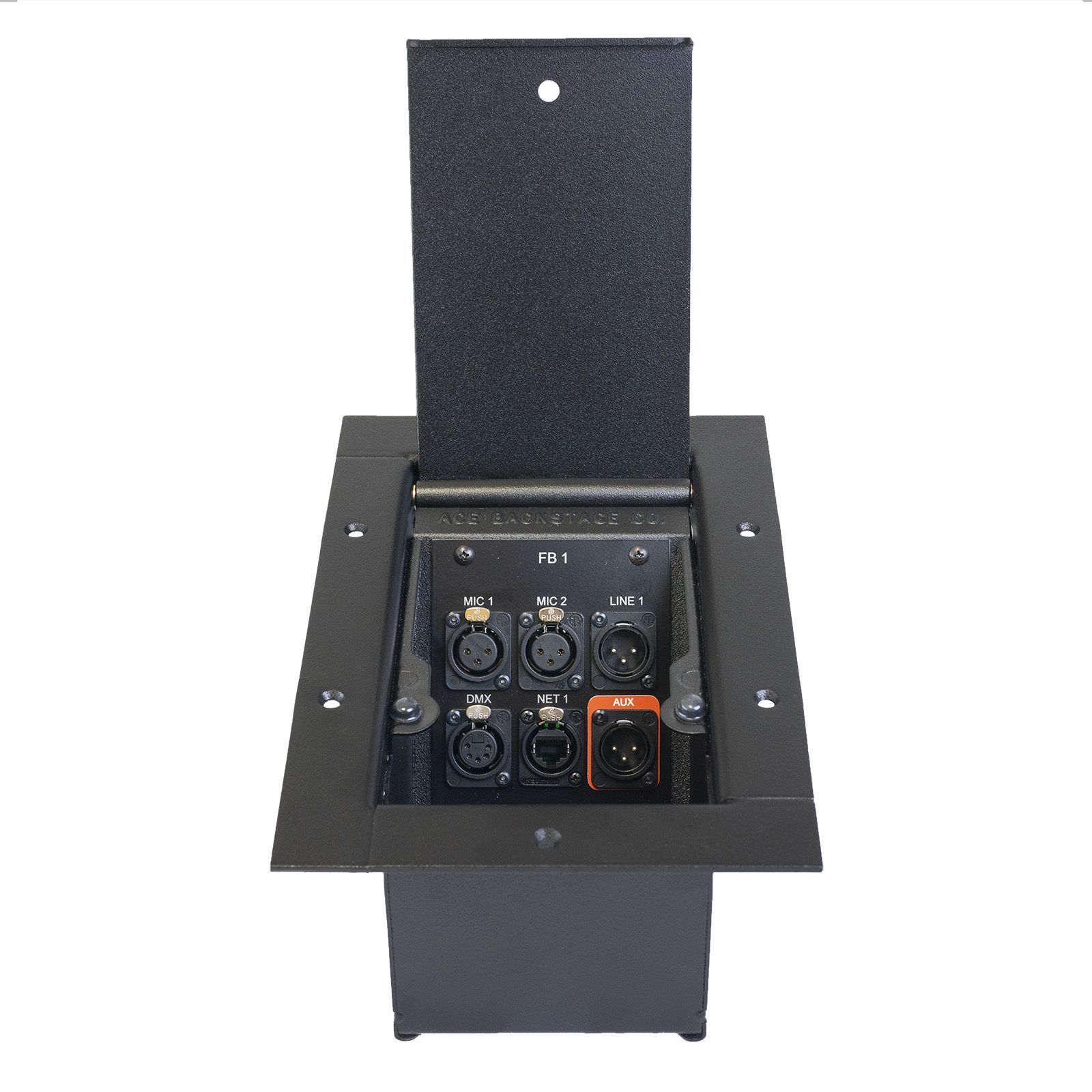

The Half Stage Pocket has the panel capacity for either:
• (1) #PNL-100 Series "Connectrix" Panels or
• (1) #PE Series Single Gang Electric Duplex Switch Box Panels

The Half Stage Pocket has the connector capacity for either:
• (6) "Connectrix" Connectors or
• (6) Neutrik® Connectors or
• (6) Switchcraft® Connectors or
• (1) #PE Single Gang Electric Duplex Switch Box Panel

MEDIUM CAPACITY: The Half Stage Pocket accommodates #PNL-100 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. One (1) optional #PNL-100 Series Panels will mount up to 6 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors. DURABLE CONSTRUCTION:* Welded steel construction of Half Stage Pocket Lid, Mounting Flange, and Pocket Body resists bending under even the most severe stage loads. The Lid and Mounting Flange are made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel. SPRING LOADED HINGE PINS: Removable spring-loaded hinge pins permit the easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL), and custom application lids. CABLE WAY SLOTS: Generous 3/8" x 4" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use. EASY INSTALLATION: Easy installation into 4.75" x 8.5" rectangle cutout on the stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations. DECORATOR FINISHES: Scratch/wear-resistant finish, oven-cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange with a brushed finish are also available by special order. RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.

	MATERIALS
	STANDARD POCKET MATERIALS: Arnev Half-size Standard Vertical Slant Panel Stage Pocket Lids and Mounting Flanges are made of 1/8" (nominally 11 ga. (.120") thick CRS steel while the Half Stage Pocket Body is made from 16 ga. (.062") thick CRS steel. The exception to this is the Brass Half Stage Pocket Lid and Mounting Flange which is made of 1/8" (nominally 11 ga. (.120")) thick Half Hard Solid Brass with a Stage Pocket Body made from 16 ga. (.062") thick CRS steel. Half Stage Pockets are manufactured with the following materials: • Lids & Mounting Flanges are made of 1/8" (nominally 11 ga. (.120" thick)) CRS Steel • Pocket Body is made from 16 ga. (.062" thick) CRS Steel • Brass Lid & Mounting Flanges are made of 1/8" (nominally 11 ga. (.120" thick)) Half Hard Solid Brass


	PACKAGES: Arnev Half Stage Pocket Packages were designed to meet customer requests to "package" our most frequently used products into simple, all-in-one, complete "Connectivity" Solutions. The Packages are a sample of some of our most requested Half Stage Pocket products. • Package 1 - Half Stage Pocket with Standard Lid + (1) #PNL-106 Panel • Package 2 - Half Stage Pocket with Standard Lid + (1) #PE Panel • Package 3 - Half Stage Pocket with Carpet Lid + (1) #PNL-106 Panel • Package 4 - Half Stage Pocket with Carpet Lid + (1) #PE Panel • Package 5 - Half Stage Pocket with Locking Lid + (1) #PNL-106 Panel

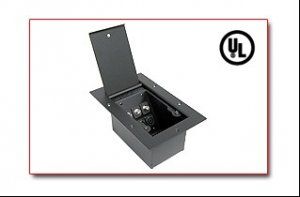

UL LISTED: UL Listed compliance Standard 514A file FLOOR BOX 44LK Suitable for raised floor applications.

UL Listed

UL Listed Copy

Sales Taxes please note: All our AV boxes are shipped directly to you from our California facility and if you are having the box shipped to you in California we will be calculating the sales tax needed for the transaction. By law, we are required to charge and pay California sales taxes when a product is shipped to a customer in California.

Step #1. Choose only 1 Panel, or PE
#PE Duplex receptacle panel, #PNL-100 small connectrix panel, #PNL-102 small connectrix panel, #PNL-103 small connectrix panel, #PNL-104 small connectrix panel, #PNL-105 small connectrix panel, #PNL-106 small connectrix panel, #PNL-107 for Decora Type Receptacle
Step #2. Choose the style, Standard or Carpet Flange

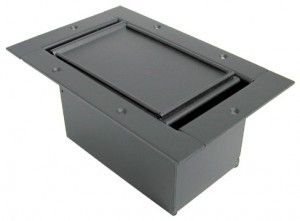

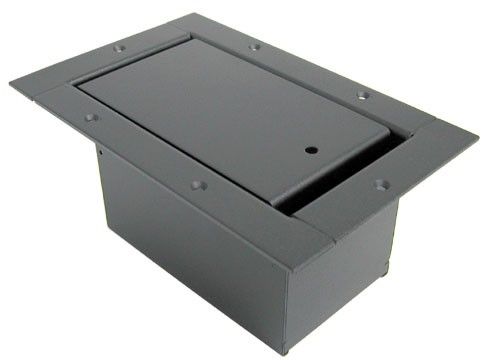

Standard 123SLBK (No lock), Carpet Lid 123CLBK (No lock), Locking Lid with Butterfly Lock (123L1Bk) in Black, Locking lid with Flat Head Lock (123L2Bk) in Black, Locking lid with Hex Lock (123L3BK) in Black
Step #3. Choose a finish:

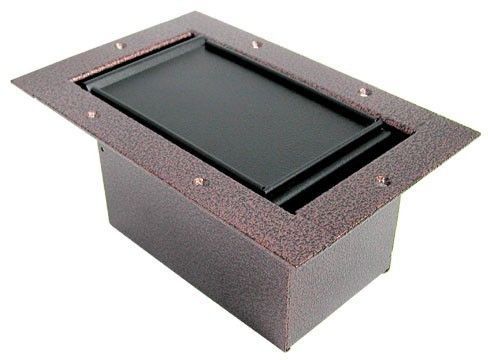

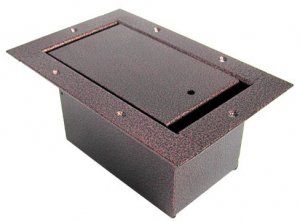

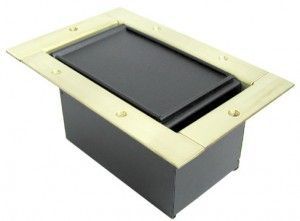

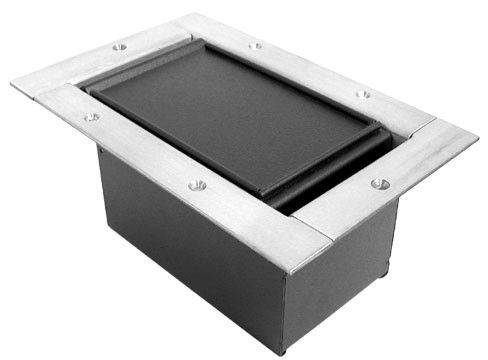

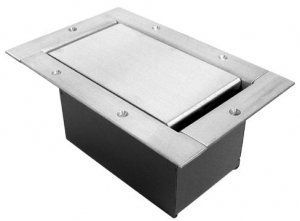

Standard Black (BK), Coppervein (CV), Stainless Steel Standard Lid Bezel (323SLSS), Stainless Steel Bezel Carpet Lid (323CLSS), Solid Brass Bexel Standard lid (223SLBR), Solid Brass Bexel Carpet lid (223CLBR)
Step #4. Please choose for Wood, or Concrete pour type.
Wood Floor, Concrete Pour Floor (103BBX)
