Full pocket AV or stage floor box for AV connectors and power.
Next image
Zoom image

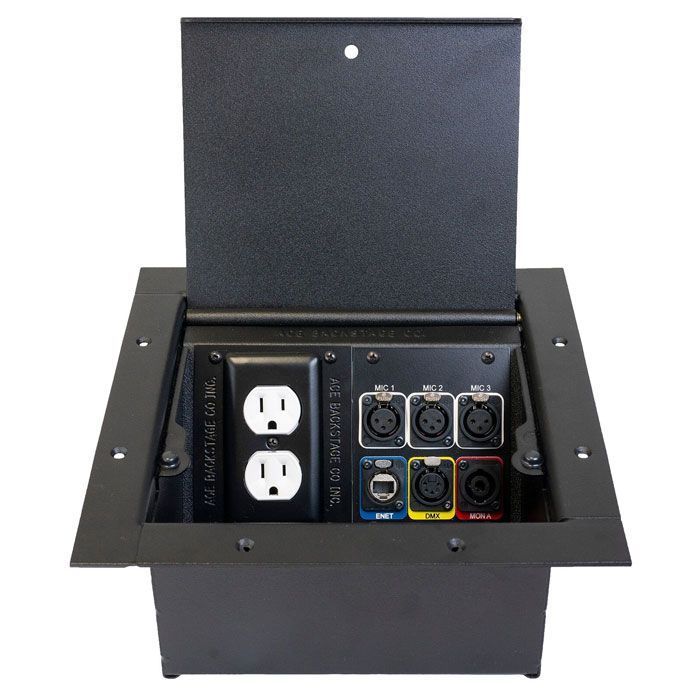

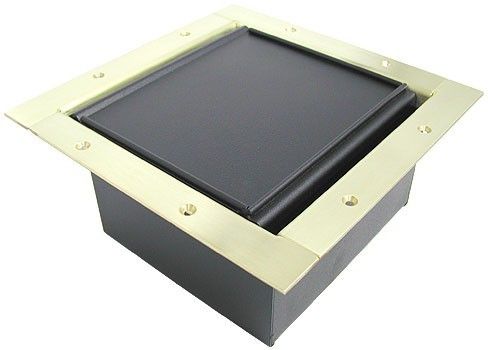

Full Pocket Audio Video Floor Box/1 duplex/6 low voltage

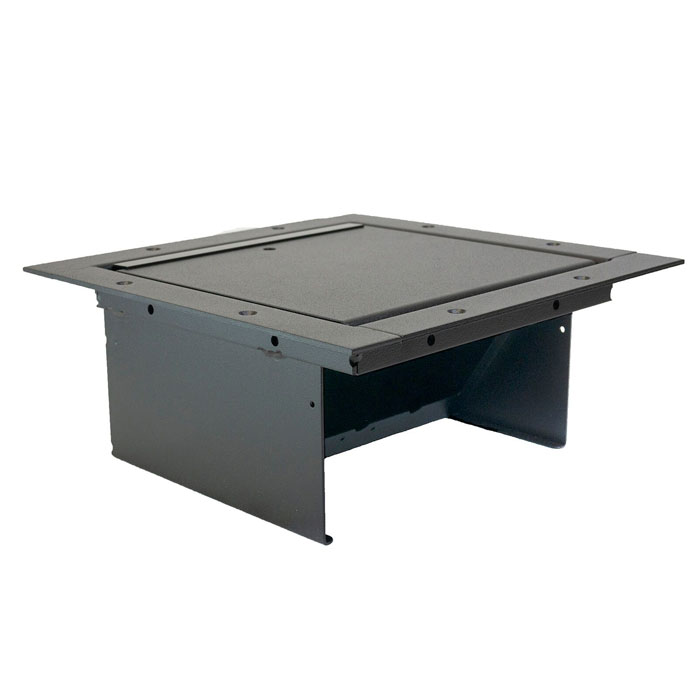

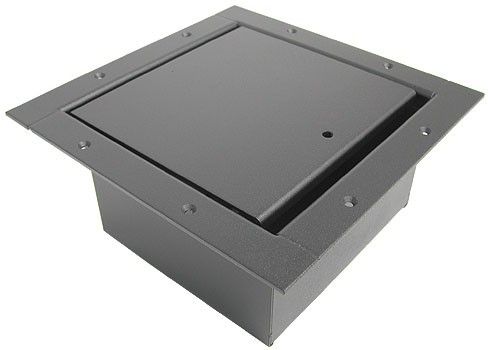

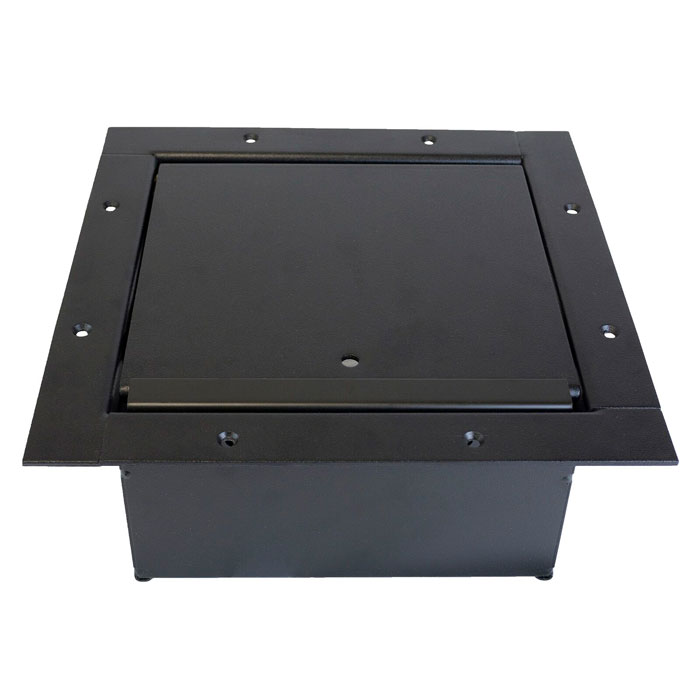

AP-122SLBK Full-Size Audio Video floor box with room for up to one duplex and up to six low-voltage devices. These do take about 10 business days to custom manufacture and ship.

Click here to order all the Audio-Video Connectors Available

 THIS PRODUCT IS MADE IN THE USA



  • $397.87





Qty:
  • SKU
    Full Pocket AP-122SLBK
The floor box lid will close, and the floor box cords will come out of the front floor box section. They can either have a Hex key, butterfly, or flat-head key.  Standard Black finish. It comes with a standard 3/8 inch cable exit and it even is available as a cover for carpeting.  These custom-order Audio Video boxes are not returnable or refundable, so please double-check your order.



Audio Video Table Top Pocket Box, with up to 12 optional low voltage connectors available in one box for you to customize.  Panels included and in black for carpet flange pocket or regular full pocket.

Sales Taxes please note:  All our AV boxes are shipped directly to you from our California facility and if you are having the box shipped to you in California we will be calculating the sales tax needed for the transaction.  By law, we are required to charge and pay California sales taxes when a product is shipped to a customer in California.

The Full Stage Pocket has the panel capacity for either:
• (2) #PNL-100 Series "Connectrix" Panels or

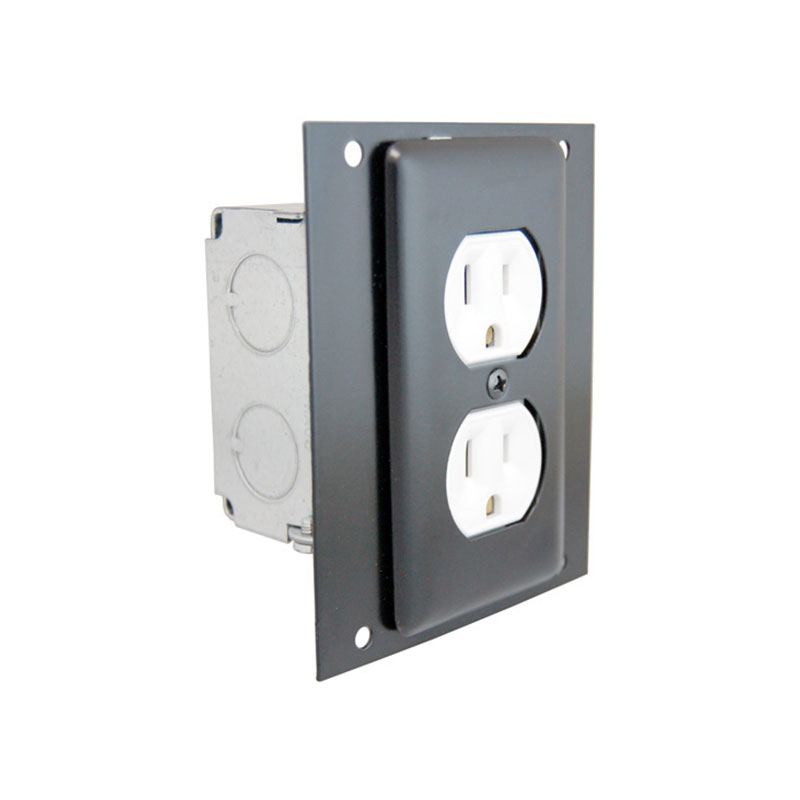

• (2) #PE Series Single Gang Electric Duplex Switch Box Panels or
• (1) #PNL-100 Series and One #PE Panel
The Full Stage Pocket has the connector capacity for either:
• (12) "Connectrix" Connectors or
• (12) Neutrik® Connectors or
• (12) Switchcraft® Connectors or
• (6) "Connectrix", Neutrik®, or Switchcraft® Connectors and
  (1) #PE Electric Duplex Switch Box


Utilizing Arnev's "Connectrix" System will allow mounting of up to 12 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors in the Full Stage Pocket. All Arnev Full Stage Pockets are welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange and a 16 ga. (.062") thick Pocket Body. The Full Stage Pocket resists bending under even the most severe stage loads.

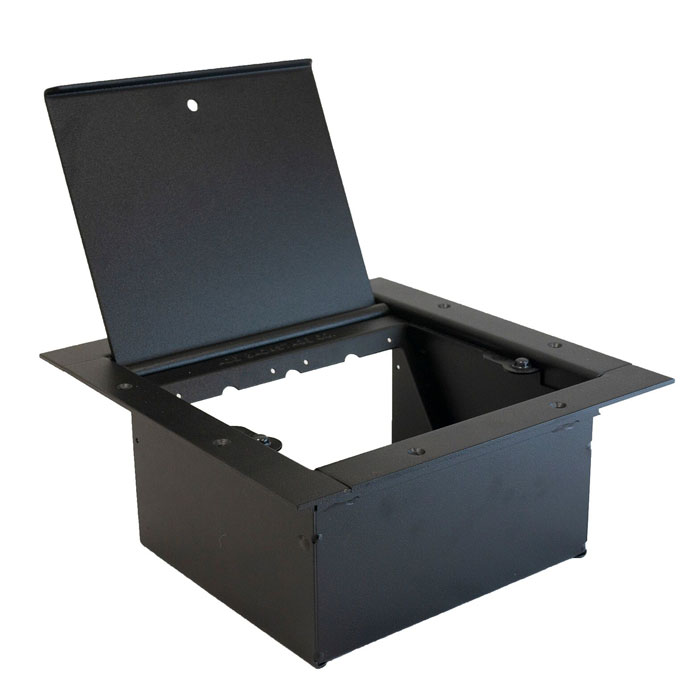

Removable spring-loaded hinge pins permit the easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 8" permits easy cable exit from the stage pocket, even for large gauge cables. A cableway slot closure channel closes the slot when not in use. The Full Stage Pocket has an easy installation into an 8.5" x 8.5" cutout on the stage floor. Open easy access from the top or back of the Full Stage Pocket to connector panels making for easy installation.

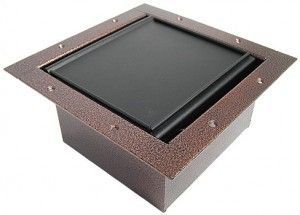

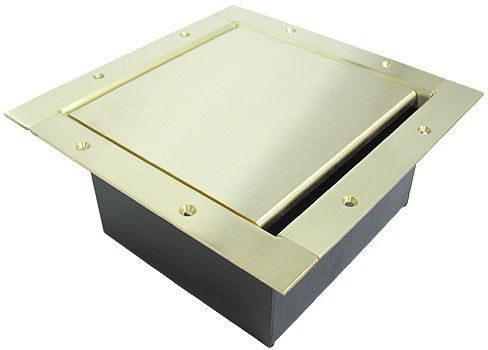

A scratch/wear-resistant finish, oven-cured powder coat is electrostatically applied inside and outside the entire Stage Pocket. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange, as well as a Solid Stainless Steel Lid and Mounting Flange, are also available by special order. The Full Stage Pocket's solid rubber Lid Stops cradling the lid to prevent lid rattle.

Arnev's Standard Vertical Slant Panel Stage Pocket Systems offer "Connectivity" Solutions with a flexible, reliable, and simplistic design. The flexible design of the Standard Vertical Slant Panel Stage Pocket Lid, Mounting Flange, and Pocket Body along with Custom and Prefabricated Aluminum "Connectrix" (Neutrik®/Switchcraft® combo cutout) Panels, Switchcraft® Panels, and our large selection of "Connectrix" (Neutrik®/Switchcraft® combo cutout), Switchcraft®, and Custom Connectors allow the Stage Pockets to be installed in many different applications. These applications include educational, institutional, and liturgical settings. Within these applications various audio, communications, control, data, electric AC power, video, and voice terminations are possible, allowing for a complete Stage Pocket System.

Arnev's Standard Vertical Slant Panel Stage Pockets are available in a variety of sizes (Mini, Half, Full, and Double Wide) making them flexible in both form and function and able to meet your requirements. All Standard Vertical Slant Panel Stage Pockets are UL Listed except for the Mini Pocket.

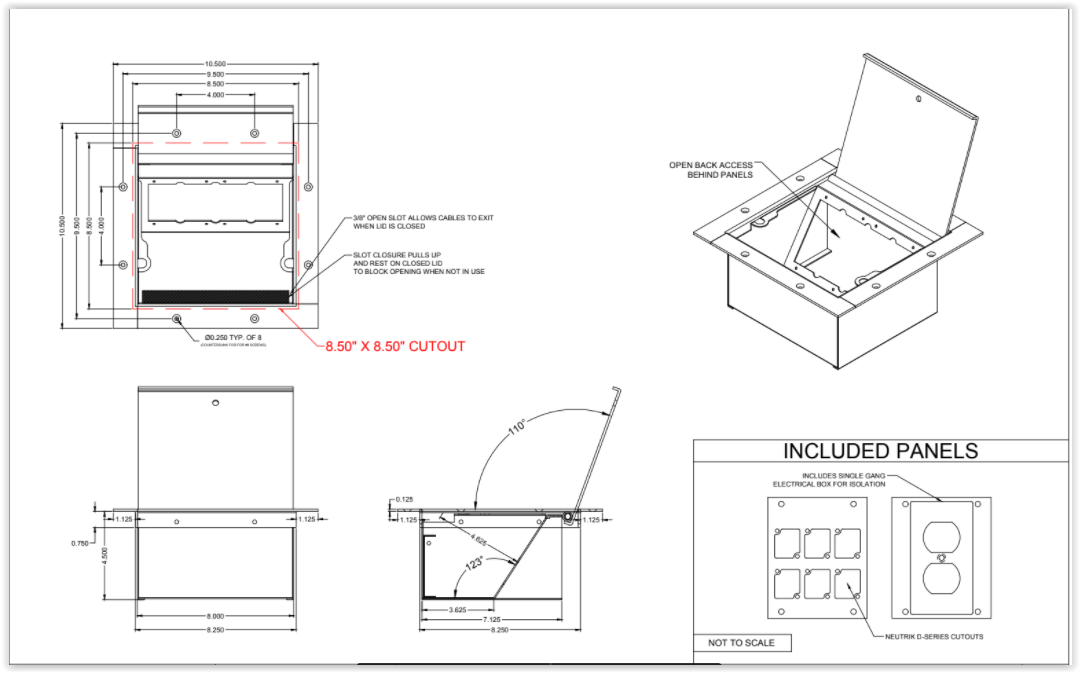

SPECIFICATIONS


Full Stage Pocket Body Size = 8.000” W x 3.500” H x 7.187” D
Full Stage Pocket Lid & Mounting Flange Size = 10.500” W x 1.000” H x 10.500” D
Full Stage Pocket Connector Capacity = Up to 12 “Connectrix”, Neutrik®, or Switchcraft®
Full Stage Pocket Cutout Dimensions = 8.500" W x 8.500" H
Full Stage Pocket Material = CRS Steel and/or Solid Half Hard Brass
Full Stage Pocket Panel Capacity =
• (2) #PNL-100 Series “CONNECTRIX” Panels OR
• (2) #PSW-100 Series Switchcraft® Panels OR
• (2) #PE Series Single Gang Electric Duplex Switch Box Panels OR
• (1) #FP3E Series Triple Gang Electric Duplex Switch Box Panel OR
• (1) #PNL-120 Series “Connectrix” Panel






CONNECTORS


Audio-Video Connectors
Connectrix
Custom Cut
Switchcraft®

Neutrik® "D" and Switchcraft® "E" Connector Mounts
Custom Cut Connector Mounts
Switchcraft® "D" Connector Mounts

“CONNECTRIX” CONNECTORS COMBINE NEUTRIK® “D” AND SWITCHCRAFT® “E” MOUNTING HOLE PATTERNS FOR GREATER FLEXIBILITY

The “Connectrix” system connectors may be used in any of the “Connectrix” panels utilizing the popular mounting pattern of the Neutrik “D” and Switchcraft “E” series mounting patterns. Connectors using the generous rectangular “Connectrix” cutout will add to a growing array of adapter-mounted standard connectors. The adapter mount is plastic and provides ground isolation between the panel and connector. Click on the links above for our current selection of stock “Connectrix” system connectors.

When ordering, please specify the model number and type of connector as well as the panel model number (#PNL-100 Series, #PNL-120 Series, or #PSW-100 Series) the connectors will be loaded into. *NOTE: Specific High Density (HD) and Sub-D pattern connectors will require either 2 or 3 “Connectrix” Horizontal Spaces or 2 or 3 “Connectrix” Vertical Spaces, depending on the connectors selected. Connectors may be loaded into panels with nut certs and nut/bolts or black aluminum pop rivets.






PANELS


Audio-Video Connectors
Connectrix
Custom Cut
Switchcraft®

"Connectrix" Panels combine Neutrik® "D" and Switchcraft® "E" Connector Mounts
Custom Cut Panels with Custom Connector Mounts
Utilize Switchcraft® "D" Connector Mounts

“CONNECTRIX” SYSTEM PANEL DESCRIPTION

Much pre-cut stock #PNL-100 Series, #PNL-120 Series “Connectrix” System connector panels, and #PSW-100 Series Switchcraft® connector panels are available for the Full Stage Pocket. Standard "Connectrix" and Switchcraft® Panels are created from high-strength, tough, aircraft aluminum alloy (6061-T6) that is 1/16" (.062") or 1/8" (.125") thick. The standard panels mount with (4 or 6) self-tapping screws. Each panel is CNC machined to precisely mate with the designated connectors and in the pocket mounting holes. Each Standard "Connectrix" and Switchcraft® Panel is finished with oven cured semi-gloss black powder coat.

Most panels provide header space for custom engraving which is fast and easily accomplished on a separate dedicated CNC engraving machine. The finished panels show bright aluminum in the engraved characters and need not be backfilled.  Arnev's standard panels are flat, strong, and rigid like the typical thinner mild steel panels. Because the panels are machined and not punched they stay flat and undistorted, unlike punched panels which distort the punching process. The machined “Connectrix” style cutouts combine popular mounting patterns of the Neutrik “D” series and Switchcraft “E” series connectors with a generous rectangular cutout that mates with a growing array of adapter-mounted standard connectors. The adapter mount is plastic and provides ground isolation between the panel and connector.

Using the “Connectrix” system panel it is possible to mount any combination of modular jacks (RJ45, RJ11, etc.), BNCs, dual RCAs, mic jacks, speaker jacks, and numerous other standard connectors without a single custom punch. This system provides for more connectors and mounting options in stock standard Arnev panels. The benefit is faster order turnaround and lower cost. Less custom fabrication for custom spec results with off-the-shelf stock prices.





PE
PNL-100


SERIES PANELS
SERIES PANELS

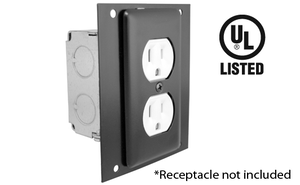

#PE
#PNL-100



pocket_panel_configs_13
pocket_panel_configs_14




#PNL-102




pocket_panel_configs_24



pocket_panel_configs_28
#PNL-103



pocket_panel_configs_33
pocket_panel_configs_34



pocket_panel_configs_38
#PNL-104



pocket_panel_configs_43
pocket_panel_configs_44



pocket_panel_configs_48
#PNL-105



pocket_panel_configs_53
pocket_panel_configs_54



pocket_panel_configs_58

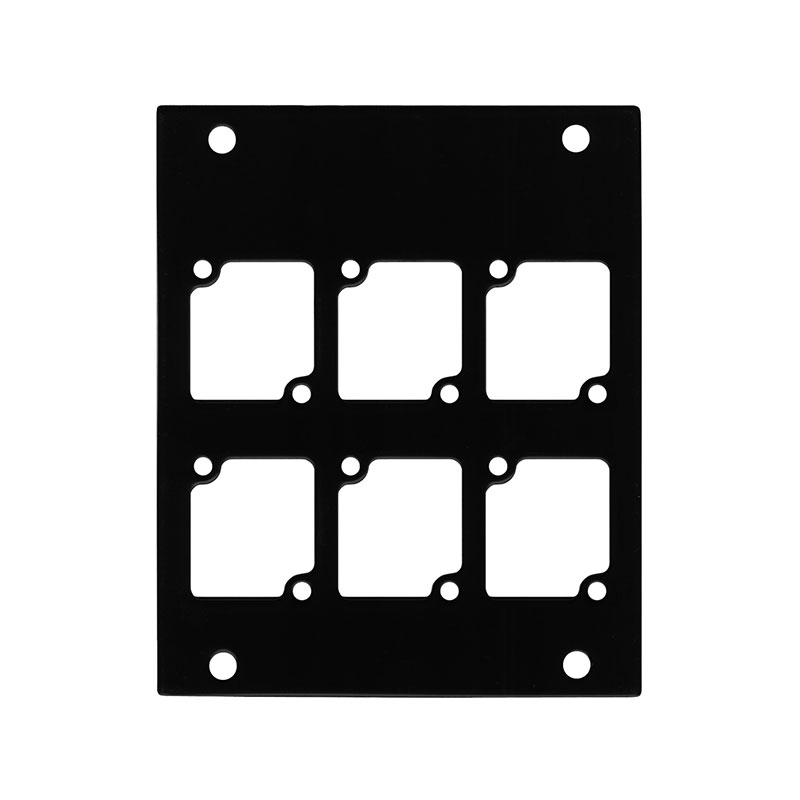

#PNL-106



pocket_panel_configs_63
pocket_panel_configs_64

















• (1) Stage Pocket Body with Trim Bezel Mounting Flange
• (1) Lid
• (2) Hinge Pins
• (2) Springs
• (8) #8 Self-Tapping Sheet Metal/Wood Screws
• (1) Slot Closure






ORDERING


When ordering Stage Pockets please specify the following:
Stage Pocket Model Number: Example - #122SLBK
Stage Pocket Model Name (size): Mini | Half | Full | Double Wide
Stage Pocket Finish Type (Lid & Mounting Flange): Black, Brass, Copper Vein, Stainless Steel

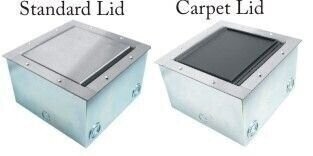

Stage Pocket Lid Type: Carpet Lids (CL), Locking Lids (LL), Standard Lids (SL)
Optional Stage Pocket Panel(s) Model Numbers: Example - #PNL-106
Optional Connectors to be loaded into Panel(s): Example - #C15101
Location of Connectors mounted into Panel(s): Example - Top Left
Type of Connector Mounts: Nuts/Bolts or Black Aluminum Pop Rivets


















LARGE CAPACITY: The Full Stage Pocket accommodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. Two (2) optional #PNL-100 Series Panels or one (1) optional #PNL-120 Series Panel will mount up to 12 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors*. Two (2) optional #PSW-100 Series Panels will mount up to 12 Switchcraft® type connectors.

DURABLE CONSTRUCTION: Welded steel construction of Full Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid and Mounting Flange are made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel.

SPRING LOADED HINGE PINS: Removable spring-loaded hinge pins permit the easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL), and custom application lids.

CABLE WAY SLOTS: Generous 3/8" x 8" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use.

EASY INSTALLATION: Easy installation into 8.5" x 8.5" square cutout on the stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.

DECORATOR FINISHES: Scratch/wear-resistant finish, oven-cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange, as well as a Solid Stainless Steel Lid and Mounting Flange with brushed finishes, are also available by special order.

RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.


















STANDARD POCKET MATERIALS: Arnev's Full-size Standard Vertical Slant Panel Stage Pocket Lids and Mounting Flanges are made of 1/8" (nominally 11 ga. (.120") thick CRS steel while the Full Stage Pocket Body is made from 16 ga. (.062") thick CRS steel. The exception to this is the Brass Full Stage Pocket Lid and Mounting Flange which is made of 1/8" (nominally 11 ga. (.120")) thick Half Hard Solid Brass with a Stage Pocket Body made from 16 ga. (.062") thick CRS steel.

Full Stage Pockets are manufactured with the following materials:
• Lids & Mounting Flanges are made of 1/8" (nominally 11 ga. (.120" thick)) CRS Steel
• Pocket Body is made from 16 ga. (.062" thick) CRS Steel
• Brass Lid & Mounting Flanges are made of 1/8" (nominally 11 ga. (.120" thick)) Half Hard Solid Brass









PACKAGES: Arnev's Full Stage Pocket Packages were designed to meet customer requests to "package" our most frequently used products into simple, all-in-one, complete "Connectivity" Solutions.









UL LISTED: UL Listed compliance Standard 514A file FLOOR BOX 44LK Suitable for raised floor applications.
UL Listed

UL Listed Copy







  • Step #5. Choose a Wood floor, or a New Concrete Pour
    For a Wood Floor, For a Concrete Floor (102BBX), For Concrete Floor with Poly Coated Box for Humidity Protection (102BBXW)
  • These custom boxes take about 10 business days to manufacture
    These boxes are all custom made in the USA, and do take about 10 business days to ship.
  • Step #1. Choose the first panel of two panels needed for this box

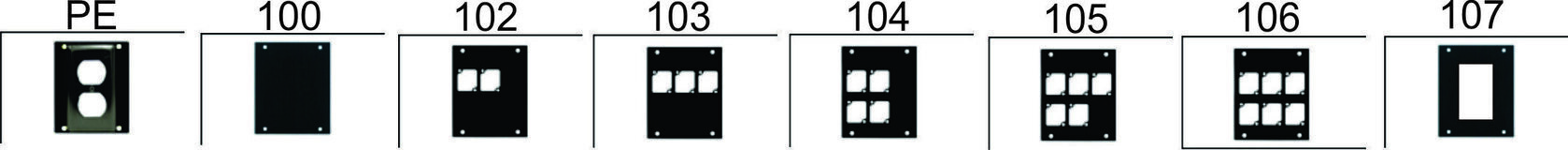

    PE for duplex receptacle, PNL 100 with no holes, PNL 102 with two holes, PNL 103 with three holes, PNL 104 with four holes, PNL 105 with five holes, PNL 106 with six holes, PNL 107 FOR DECORA RECEPTACLE
  • Step #2. Choose the second panel for this box
    PE for duplex receptacle, PNL 100 with NO HOLES, PNL 102 with two holes, PNL 103 with three holes, PNL 104 with four holes, PNL 105 with five holes, PNL 106 with six holes, PNL 107 for Decora receptacle
  • Step #3. Please choose a finish

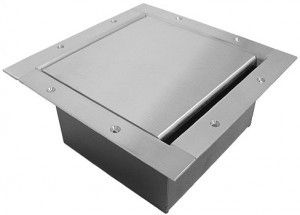

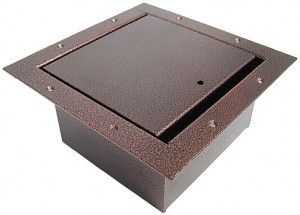

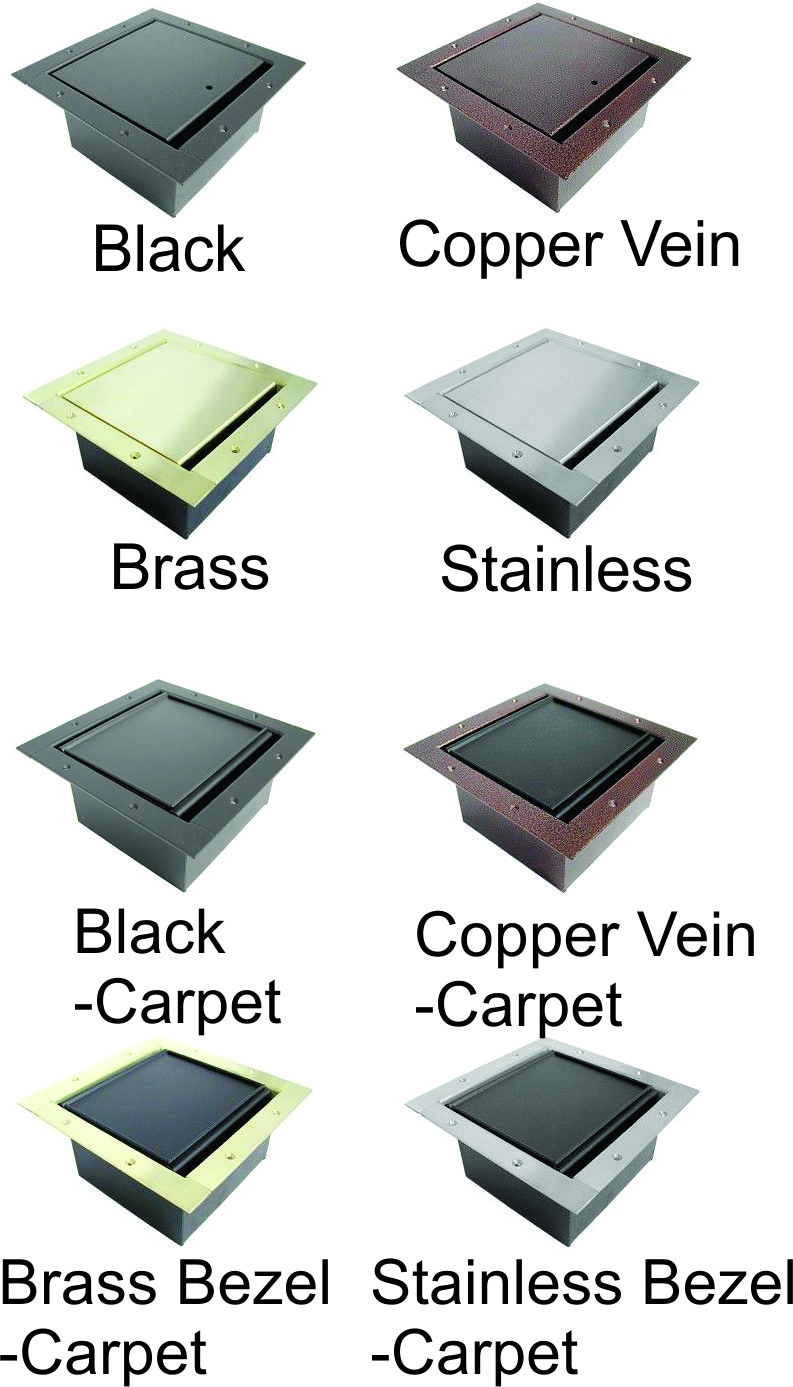

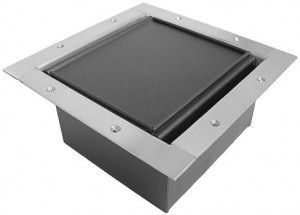

    Standard Black (BK) 122, Coppervein (CV) 123, Stainless Steel Bezel (SS) 322, Solid Brass (BR) 222
  • Step #4. Choose a Standard or Carpet Flange Box types, or with locking options

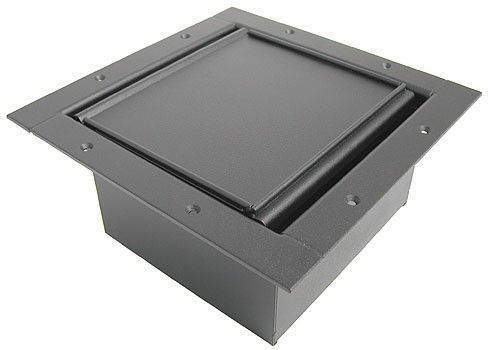

    Full Pocket / Standard lid (122SLBK) - Black, Full Pocket / Carpet Lid (122CLBK) - Black, NOTE: THE PRODUCTS BELOW ARE ALL EXTRA PRODUCTS YOU MIGHT NEED TO REVIEW, Full Pocket / Butterfly Locking Lid (122L1BK) - Blaqk, Full Pocket / Flat Head Locking Lid (122L2BK) - Black, Full Pocket / Locking Lid with Hex Lock (122L3BK) - Black, Full Pocket / Flush Flange Standard Lid (122SLBK-FF) - Black, Full Pocket / Flush Flange/ Locking Lid with Butterfly Lock (122L1BK-FF) - Black, Full Pocket / Standard Lid Stainless Steel (322SLSS), Full Pocket / Carpet Lid Stainless Steel (322CLSS), Full Pocket / Standard Lid Brass (322SLBR), Full Pocket / Carpet Lid Brass, Note: Brass & Stainless Locking covers are available, so call 800-260-1181
