The audio-video floor box lid will close, and the cords will come out of the front section. These AV Floor boxes have a second small door that lifts and closes shut when not in use to prevent your heel from getting stuck in the opening. These custom-order Audio Video boxes are not returnable or refundable, so please double-check your order by seeing the cut sheet below or at the left side top to make sure this will work for your application. These audio video floor boxes are top-of-line products. These Floor boxes are all available for wood or concrete floors. You will love this product.
The Double Wide Stage Pocket has the panel capacity for either:
• (4) #PNL-100 Series "Connectrix" Panels or
• (4) #PE Series Single Gang Electric Duplex Switch Box Panels or
• any combination of the 4 panels, like (1) #PE series and (3) PNL-100 series.
The Double Wide Stage Pocket has the connector capacity for either:
• (24) "Connectrix" Connectors or
• (24) Neutrik® Connectors or
• (24) Switchcraft® Connectors or
• (12) "Connectrix", Neutrik®, or Switchcraft® Connectors and (2) #PE Electric Duplex Switch Box Panels
Price includes panel only.

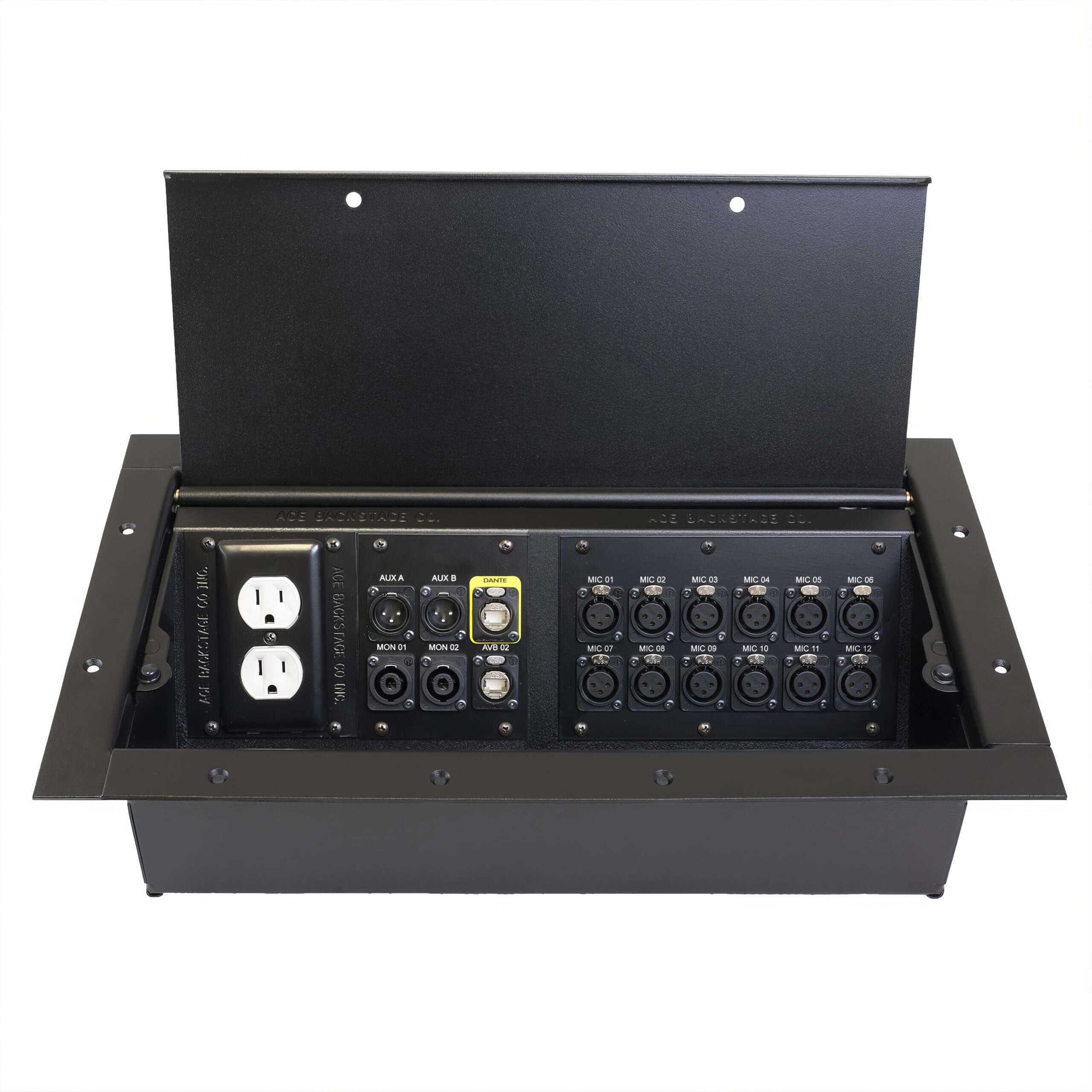

Arnev Products' extra large-sized Stage Pocket, the Double Wide Stage Pocket, is a standard general-use vertical slant panel flush stage pocket.
The Double Wide Stage Pocket is made of heavy-duty steel and may be used to conceal audio, communications, control, data, electric AC power,
switches, video, voice connections, etc. below the floor surface for easy access and to prevent connector damage. The Double Wide Stage
Pocket has an extra-large capacity inter-changeable panel system which permits easy custom connector/panel configurations.
Utilizing Arnev's "Connectrix" System will allow mounting of up to 24 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors in the Double Wide Stage Pocket. All Arnev Double Wide Stage Pockets have welded steel construction, with a 1/8" (nominally 10 ga. (.135")) thick CRS steel Lid, a 1/8" (nominally 11 ga. (.120")) thick CRS steel Mounting Flange, and a 16 ga. (.062") thick Pocket Body. The Double Wide Stage Pocket resists bending under even the most severe stage loads.
Removable spring-loaded hinge pins permit the easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 16" permits easy cable exit from the stage pocket, even for large gauge cables. Two cableway slot channel closures close the slot when not in use. The Double Wide Stage Pocket has an easy installation into a 16.8" x 8.5" cutout on the stage floor. Open easy access from the top or back of the Double Wide Stage Pocket to connector panels making for easy installation.
A scratch/wear-resistant finish, oven-cured powder coat is electrostatically applied inside and outside the entire Stage Pocket. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange, as well as a Solid Stainless Steel Lid and Mounting Flange, are also available by special order. The Double Wide Stage Pocket's solid rubber Lid Stops cradling the lid to prevent lid rattle.
Arnev's Standard Vertical Slant Panel Stage Pocket Systems offer "Connectivity" Solutions with a flexible, reliable, and simplistic design. The flexible design of the Standard Vertical Slant Panel Stage Pocket Lid, Mounting Flange, and Pocket Body along with Custom and Prefabricated Aluminum "Connectrix" (Neutrik®/Switchcraft® combo cutout) Panels, Switchcraft® Panels, and our large selection of "Connectrix" (Neutrik®/Switchcraft® combo cutout), Switchcraft®, and Custom Connectors allow the Stage Pockets to be installed in many different applications. These applications include educational, institutional, and liturgical settings. Within these applications various audio, communications, control, data, electric AC power, video, and voice terminations are possible, allowing for a complete Stage Pocket System.
Arnev's Standard Vertical Slant Panel Stage Pockets are available in a variety of sizes (Mini, Half, Full, and Double Wide) making them flexible in both form and function and able to meet your requirements. All Standard Vertical Slant Panel Stage Pockets are UL Listed except for the Mini Pocket. |
|
| |
|
|
| |
SPECIFICATIONS |
|
| |
• Double Wide Stage Pocket Body Size = 16.000” W x 4.500” H x 7.187” D
• Double Wide Stage Pocket Lid & Mounting Flange Size = 18.500” W x 0.937” H x 10.500” D
• Double Wide Stage Pocket Connector Capacity = Up to 24 “Connectrix”, Neutrik®, or Switchcraft®
• Double Wide Stage Pocket Cutout Dimensions = 16.800" W x 8.500" H
• Double Wide Stage Pocket Material = CRS Steel and/or Solid Half Hard Brass
• Double Wide Stage Pocket Panel Capacity =
• (4) #PNL-100 Series “CONNECTRIX” Panels OR
• (4) #PSW-100 Series Switchcraft® Panels OR
• (4) #PE Series Single Gang Electric Duplex Switch Box Panels OR
• (2) #FP3E Series Triple Gang Electric Duplex Switch Box Panels OR
• (2) #PNL-120 Series “Connectrix” Panels
|
|
| |
|
|
| |
CONNECTORS |
|
| |
Neutrik® "D" and Switchcraft® "E" Connector Mounts
Custom Cut Connector Mounts
Switchcraft® "D" Connector Mounts
“CONNECTRIX” CONNECTORS COMBINE NEUTRIK® “D” AND SWITCHCRAFT® “E” MOUNTING HOLE PATTERNS FOR GREATER FLEXIBILITY
The “Connectrix” system connectors may be used in any of the “Connectrix” panels utilizing the popular mounting pattern of the Neutrik “D” and Switchcraft “E” series mounting patterns. Connectors using the generous rectangular “Connectrix” cutout will add to a growing array of adapter-mounted standard connectors. The adapter mount is plastic and provides ground isolation between the panel and connector. Click on the links above for our current selection of stock “Connectrix” system connectors.
When ordering, please specify the model number and type of connector as well as the panel model number (#PNL-100 Series, #PNL-120 Series, or #PSW-100 Series) the connectors will be loaded into. *NOTE: Specific High Density (HD) and Sub-D pattern connectors will require either 2 or 3 “Connectrix” Horizontal Spaces or 2 or 3 “Connectrix” Vertical Spaces, depending on the connectors selected. Connectors may be loaded into panels with nut certs and nut/bolts or black aluminum pop rivets.
|
|
| |
|
|
| |
PANELS |
|
| |
"Connectrix" Panels combine Neutrik® "D" and Switchcraft® "E" Connector Mounts
Custom Cut Panels with Custom Connector Mounts
Utilize Switchcraft® "D" Connector Mounts
“CONNECTRIX” SYSTEM PANEL DESCRIPTION
Much pre-cut stock #PNL-100 Series, #PNL-120 Series “Connectrix” System connector panels, and #PSW-100 Series Switchcraft® connector panels are available for the Double Wide Stage Pocket. Standard "Connectrix" and Switchcraft® Panels are created from high-strength, tough, aircraft aluminum alloy (6061-T6) that is 1/16" (.062") or 1/8" (.125") thick. The standard panels mount with (4 or 6) self-tapping screws. Each panel is CNC machined to precisely mate with the designated connectors and in the pocket mounting holes. Each Standard "Connectrix" and Switchcraft® Panel is finished with oven cured semi-gloss black powder coat.
Most panels provide header space for custom engraving which is fast and easily accomplished on a separate dedicated CNC engraving machine. The finished panels show bright aluminum in the engraved characters and need not be backfilled. Arnev standard panels are flat, strong, and rigid like the typical thinner mild steel panels. Because the panels are machined and not punched they stay flat and undistorted, unlike punched panels which distort the punching process. The machined “Connectrix” style cutouts combine popular mounting patterns of the Neutrik “D” series and Switchcraft “E” series connectors with a generous rectangular cutout that mates with a growing array of adapter-mounted standard connectors. The adapter mount is plastic and provides ground isolation between the panel and connector.
Using the “Connectrix” system panel it is possible to mount any combination of modular jacks (RJ45, RJ11, etc.), BNCs, dual RCAs, mic jacks, speaker jacks, and numerous other standard connectors without a single custom punch. This system provides for more connectors and mounting options in stock standard Arnev panels. The benefit is faster order turnaround and lower cost. Less custom fabrication for custom spec results with off-the-shelf stock prices.
|
|
| |
|
|
| |
PANEL CAPACITY - #124xxxx DOUBLE WIDE POCKET |
|
| |
The Double Wide Stage Pocket has the panel capacity for either:
• (4) #PNL-100 Series "Connectrix" Panels or
• (2) #PNL-120 Series "Connectrix" Panels or
• (4) #PSW-100 Series Switchcraft® Panels or
• (4) #PE Series Single Gang Electric Duplex Switch Box Panels or
• (2) #FP3E Series Triple Gang Electric Duplex Switch Box Panels
The Double Wide Stage Pocket has the connector capacity for either:
• (24) "Connectrix" Connectors or
• (24) Neutrik® Connectors or
• (24) Switchcraft® Connectors or
• (12) "Connectrix", Neutrik®, or Switchcraft® Connectors and (2) #PE Electric Duplex Switch Box Panels
|
|
| |
|
|
| PE |
PNL-100 |
|
|
|
| SERIES PANELS |
SERIES PANELS |
|
|
|
| #PE |
#PNL-100 |
|
|
|
| name="pocket_panel_configs_13 |
pocket_panel_configs_14 |
|
|
|
| #FP3E |
#PNL-102 |
|
|
|
| pocket_panel_configs_23 |
pocket_panel_configs_24 |
|
|
|
| pocket_panel_configs_28 |
#PNL-103 |
|
|
|
| pocket_panel_configs_33 |
pocket_panel_configs_34 |
|
|
|
| pocket_panel_configs_38 |
#PNL-104 |
|
|
|
| pocket_panel_configs_43 |
pocket_panel_configs_44 |
|
|
|
| pocket_panel_configs_48 |
#PNL-105 |
|
|
|
| pocket_panel_configs_53 |
pocket_panel_configs_54 |
|
|
|
| pocket_panel_configs_58 |
#PNL-106 |
|
|
|
| pocket_panel_configs_63 |
pocket_panel_configs_64 |
|
|
|
| |
INCLUDES |
|
| |
• (1) Stage Pocket Body with Trim Bezel Mounting Flange
• (1) Lid
• (2) Hinge Pins
• (2) Springs
• (16) #8 Self-Tapping Sheet Metal/Wood Screws
• (2) Slot Closures
|
|
| |
|
|
| |
ORDERING |
|
| |
When ordering Stage Pockets please specify the following:
• Stage Pocket Model Number: Example - #124SLBK
• Stage Pocket Model Name (size): Mini | Half | Full | Double Wide
• Stage Pocket Finish Type (Lid & Mounting Flange): Black, Brass, Copper Vein, Stainless Steel
• Stage Pocket Lid Type: Carpet Lids (CL), Locking Lids (LL), Standard Lids (SL)
• Optional Stage Pocket Panel(s) Model Numbers: Example - #PNL-106
• Optional Connectors to be loaded into Panel(s): Example - #C15101
• Location of Connectors mounted into Panel(s): Example - Top Left
• Type of Connector Mounts: Nuts/Bolts or Black Aluminum Pop Rivets
|
|
| |
|
|
| |
FEATURES |
|
| |
EXTRA LARGE CAPACITY: The Double Wide Stage Pocket accommodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, #PE Series Panels, and #FP3E Series Panels in an interchangeable multi-panel system making for easy custom configurations. Four (4) optional #PNL-100 Series Panels or two (2) optional #PNL-120 Series Panel will mount up to 24 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors*. Four (4) optional #PSW-100 Series Panels will mount up to 24 Switchcraft® type connectors.
DURABLE CONSTRUCTION: Welded steel construction of Double Wide Stage Pocket Lid, Mounting Flange, and Pocket Body resists bending under even the most severe stage loads. The Lid is made from 10 gauge (nominally (.135")) thick CRS steel, the Mounting Flange is made from 1/8" (nominally 11 ga. (.120")) CRS thick steel and the Pocket Body is made from 16 ga. (.062") thick CRS steel.
SPRING LOADED HINGE PINS: Removable spring-loaded hinge pins permit the easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL), and custom application lids.
CABLE WAY SLOTS: Generous 3/8" x 16" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. Two Cable Way Slot Channel Closures close the slot when not in use.
EASY INSTALLATION: Easy installation into 16.8" x 8.5" rectangular cutout on the stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.
RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.
|
|
| |
|
|
| |
FINISHES |
|
| |
DECORATOR FINISHES Arnev Double Wide size Standard Vertical Slant Panel Stage Pockets come with a scratch/wear-resistant finish, oven-cured powder coat electro-static applied inside and outside the entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange, as well as a Solid Stainless Steel Lid and Mounting Flange with a brushed finish, are also available by special order*.
|
|
| |
|
|
</>
| |
MATERIALS
|
|
|
|
STANDARD POCKET MATERIALS: Arnev Double Wide size Standard Vertical Slant Panel Stage Pocket Lids are made from 10 gauge (nominally (.135")) thick CRS steel, the Mounting Flange is made from 1/8" (nominally 11 ga. (.120")) CRS thick steel and the Double Wide Pocket Body is made from 16 ga. (.062") thick CRS steel. The exception to this is the Brass Double Wide Stage Pocket Lid which is made from 10 gauge (nominally (.135")) thick Half Hard Solid Brass and the Mounting Flange which is made of 1/8" (nominally 11 ga. (.120")) thick Half Hard Solid Brass with a Stage Pocket Body made from 16 ga. (.062") thick CRS steel.
Double Wide Stage Pockets are manufactured with the following materials:
• Lids are made from 10 gauge (nominally (.135")) thick CRS steel<br
|
UL LISTED: UL Listed compliance Standard 514A file FLOOR BOX 44LK Suitable for raised floor applications.
