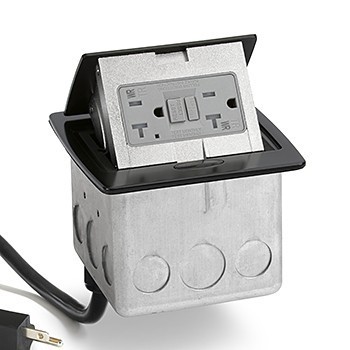

The AP-PUFP-SQ-DB-GFI is an indoor floor box that provides 20A GFCI-protected duplex power in a hidden and attractive pop-up. When closed the pop-up is hidden in your floor, all you see is a stylish dark bronze top and other colors. When you push the button the top tilts open revealing the power outlet. The outlet is 20 amps with tamper-resistant plugs and is UL listed and water rated.
Hidden Power
This pop-up is perfect for any locations where you need hidden power or locations where a wall outlet is not available. The pop-up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. It can also be installed on a tile floor, as long as you can install the back box from the underside of the floor. The unit as a whole is UL-listed including the outlet, it is also CUL-recognized for Canadian installations. In the closed position, the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.
Included Back Box
The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8" of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16" x 4 1/16", the top bezel is 4 3/4" x 4 3/4".
The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop-up, it can be used on floors or even desks.
Specifications:
- Top: Black
- UL rated for USA installations
- cUL and CSA approved for Canadian installations
- Meets NEC code 210.52(C)
- Outlet: 20A GFCI
- Water rated outlet
- Top: 4 3/4" x 4 3/4"
- Cutout hole : 4 1/16" x 4 1/16"
- Depth under floor: 3 1/8"
- Tamper resistant (TR) plugs
- Install in wood floors
- Install in tile if access from below
- Indoor residential or commercial installations
- UL listed receptacle
- Scrub water rated
- Includes back box
- Install in floors or desks
- 1 year warranty
