AP-SH-6263-58 Is a Shallow Flush Mount Floor Box, in Brass or Aluminum for Concrete Floors

Shallow 3-Gang Flush Mt cast Floor Box for Concrete

Shallow Flush Mount Floor Box for Concrete Floors. Available in Brass and Aluminum also available in our exclusive 38 custom finishes.

This Three Gang Cast Box is Partitioned, and is Semi Adjustable 2 1/4" X 9 1/4" X 4 1/4". When you need a flush mount electrical floor box, and in a very shallow space, these are the three gang floor boxes you should choose.

Product Description

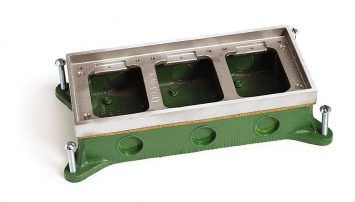

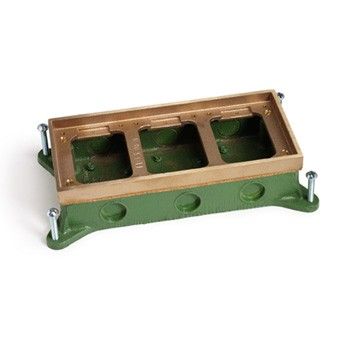

Shallow, Three Gang Cast Box (Partitioned), Semi Adjustable

The Arnev 3-gang shallow cast iron floor box for a concrete floor with a three-gang brass top. The box offers 1″ of adjustability before it is installed, the box cannot be adjusted after installation. The box is shallow making it perfect for concrete installations of 2.5″ to 3″ in depth. There are eight 3/4″ knockouts on the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area, a sold separately carpet flange can be ordered, the Arnev carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.

For Low voltage devices (CAT5-6, Tel, CTV, etc.) Click Here

These are the covers for the box above. You will need one of these covers for each gang opening. Click on the image to see all the specifications and prices, and to add to your cart.

AP-6304-S Floor Box Cover Cover (1/8'' Thick) with 2'' - 1/2'' Combo Plug for Comm./data.	AP-6304-DFB-1 Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-DFB-1-GFI Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Decora receptacles	AP-6304-DFB-1- TEL. for Com/Data. Available in both Brass and Aluminum	AP-6304-DFB-LR Floor Box Cover Dual Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex
AP-6304-DP Floor Box Cover (1/8'' Thick) with (2) 1 1/2'' Screw Plugs for Duplex		AP-CF-1101-DFB Single Gang Brass Carpet Flange, 5 1/2'' X 6 1/2''	AP-CF-1102-DFB Two Gang Brass Carpet Flange, 6 1/2'' X 8 1/2''	AP-CF-1103-DFB Three Gang Brass Carpet Flange, 6 1/2'' X 11 1/2'
