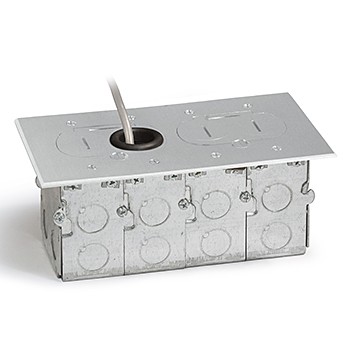

AP-RCFB-2-A Floor box for wood floors
Next image
Zoom image

AP-RCFB-2-A /Alum. 4-port Floor box /wood floor/hides plugs

Not rated yet

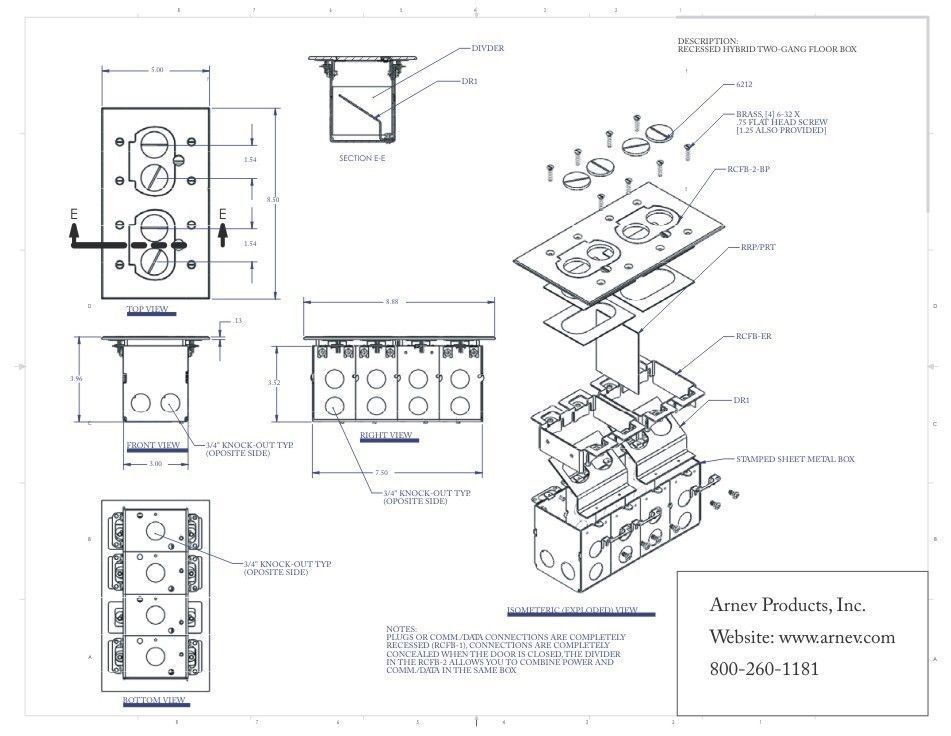

The new AP-RCFB-2-A Series floor box with Aluminum cover. This Floor box combines the ease of installation of a drop-in electrical floor box, with a recessed floor box plug. This Floor Box is for Wood Floors, 2 duplex receptacles, or one duplex and one 4 port low voltage housing for CAT5, HDMI, USB, and others, and hides the plugs. Water Tight Close-Up Plugs (Size: 4" high, by 5 1/8th wide by 8 9/16th long. 72 cubic inches) Click here for a larger image  And available in covers only.

  • $449.90

  • Price Buy
    AP-RCFB-2-A Complete Unit with Floor Box $449.90
    AP-RCFB-2-AP Cover Only $369.90
  • SKU
Please note:
There is an extension ring that comes with this box (AP-RCFB-2-A) that must be used in the installation phase.  That ring can allow the box to sit 3/4" lower on the floor, allowing thicker plugs to make the bend needed to plug into the angled plate for the duplex receptacle (DRI).  If the extension ring is not utilized in the installation, it will be difficult for those types of plugs to make that bend and connect to the DRI.
See how this box hides the plug way down low here
To order custom finishes CLICK HERE!
  Click to view available Finishes
Please read our policy for refinishing floor box covers
Thank you for your interest in refinishing your floor box cover in one of our Arnev Products, Inc. custom finishes.  For the protection of your cover, we ask that you follow these instructions.
1.  We ask that you send the COVERS ONLY.  Floor box covers generally come lacquer coated. To refinish the floor box covers, the lacquer must be removed, and this is done by soaking the covers in a strong chemical.  Any non-metallic parts that may be attached to the cover, including gaskets or electrical devices, receptacles, low voltage housings, etc., will be dissolved with the lacquer as well. This is why we insist that only floor box covers be sent for refinishing.  If the cover or receptacle cannot be removed from the floor box, we cannot soak off the lacquer and refinish the cover.  Also, no plastic-type covers are accepted. We are NOT responsible for the box itself, gaskets, or devices, so please keep all the other parts to the assembly, take off the cover, and send only the cover.
2.  Please package any exterior screws (screws that will be visible after the box is installed) with the cover so these can be finished to match the box.  Make sure they are secure so they don't get lost or scratch the cover in transit.
3.  Custom colors are run in batches.  Consequently, the finishing time can vary depending on the schedule for the batch of the custom color you have chosen.  However, as we need only the cover, the floor box itself can be installed by your electrician to maintain your building or remodeling schedule.
4.  You have been advised by one of our customer service representatives that the custom finishes are approved for LOW TRAFFIC AREAS ONLY.  Should you decide to install the floor boxes with our finished in HIGH TRAFFIC AREAS, any finishing 1-year limited warranty is void.  In addition, if you should decide to apply any protective finish (lacquer, polyurethane, etc.) OVER our custom finish, the finishing 1-year limited warranty is void.
5.  If you approve the enclosed sample and agree to the instructions above, please sign and return the top portion of this page.  You may keep the bottom portion for your records.
If you follow these instructions, we are confident that you will love your custom floor box covers and enjoy them for years to come.
I approve of sample number______________________________ and agree to these instructions.
  • Select which products
    AP-RCFB-2-A Complete Unit with Floor Box, AP-RCFB-2-AP Cover Only
