Outdooe floor box IP66 rated for waterproof with cover is closed.

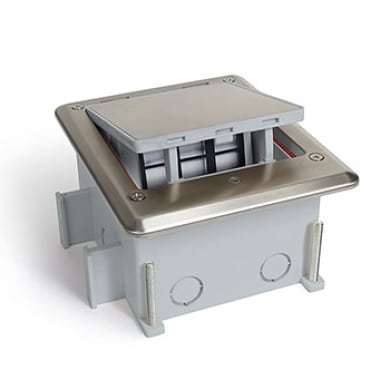

AP-OB-1-SH-6, 6-PORT Waterproof Outdoor Comm/Data floor box.

This outdoor floor box is only available for a concrete or paver floor. The AP-OB-1-SH-6 PORT Outdoor floor box for Comm./Data with stainless steel cover: Hex Key Open; Fully IP66 rated waterproof (when in closed position). Includes wrench for inside wire connections. Great Outdoor Floor Box for Comm/Data for pool decks, outdoor kitchens, and patios. Key features: Enjoying the sunshine or swimming in the backyard pool? plugin any device into this outdoor floor box. Hex Key Opens the Outdoor floor box for Comm./Data with a stainless cover.

Intertek IP66 RATED BOX (when in closed position)
UL Listed Receptacle: E473428
Tamper Proof opening (with hex key option)
Gangable; Can be used indoors or outdoor
Includes weather-resistant U.L. listed receptacle
Patent protected
Stainless Steel #316: increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures.

See the installation video below

The floor box cover is 6 7 /8 ” L x 5 11 /16 ” W
The floor boxes' overall height with the box is 3 5/8. minimum depth can be adjusted upwards of 1 3/4?
Floor receptacle box dimensions are 5 1 /4 ” L x 4 3 /4 ” W (the cover hangs over more on one side of the box than the other)

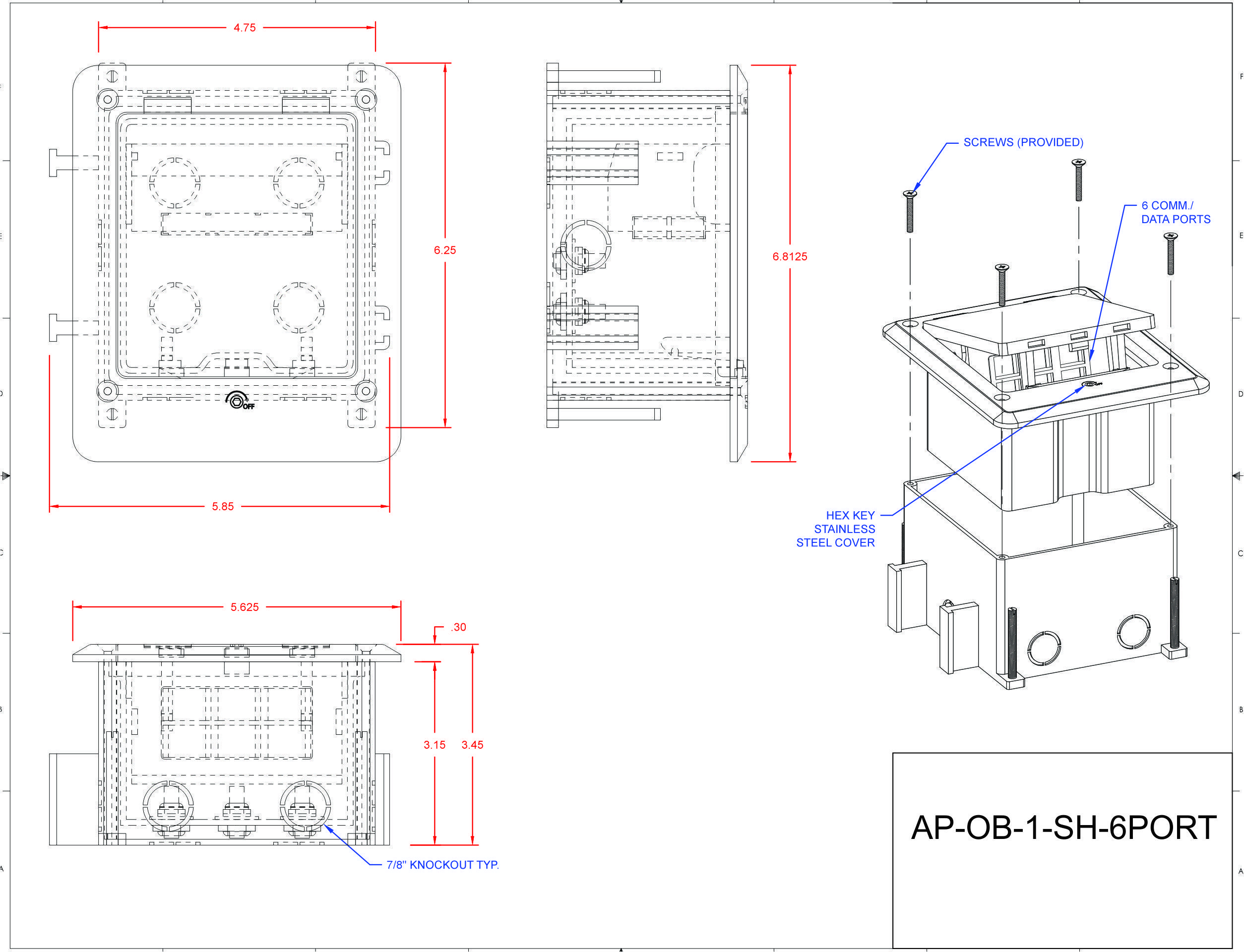

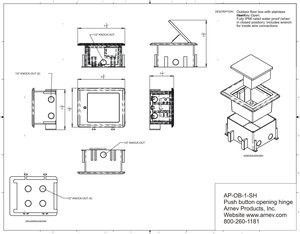

Cut Sheet

Some of the special features are:

Intertek IP66 RATED BOX (when in closed position)
UL Listed Receptacle: E60120
Tamper Proof opening (with hex key option)
Gangable; Can be used indoors or outdoor
Includes weather-resistant U.L. listed receptacle
Patent protected
Stainless Steel #316: increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures.

This is what is currently issued on the AP-OB-1 series:

IP66 rating when the box is closed (waterproof).

IP20 rating when the box is opened partially (when the lid pops open there is a catch to it.) This is so someone cannot stick their hand fully into the box if there is water present in the box from leaving it open.

UL listed receptacle

Intertek is the parent company of ETL. They performed the IP66 testing on this box.
