AP-1101-SMB 1-gang deep stamped steel Floor Box, Concrete

Name: AP-1101-SMB 1-gang deep stamped steel Floor Box, Concrete
SKU: AP-1101-SMB
Price: 214.20 USD
Availability: InStock

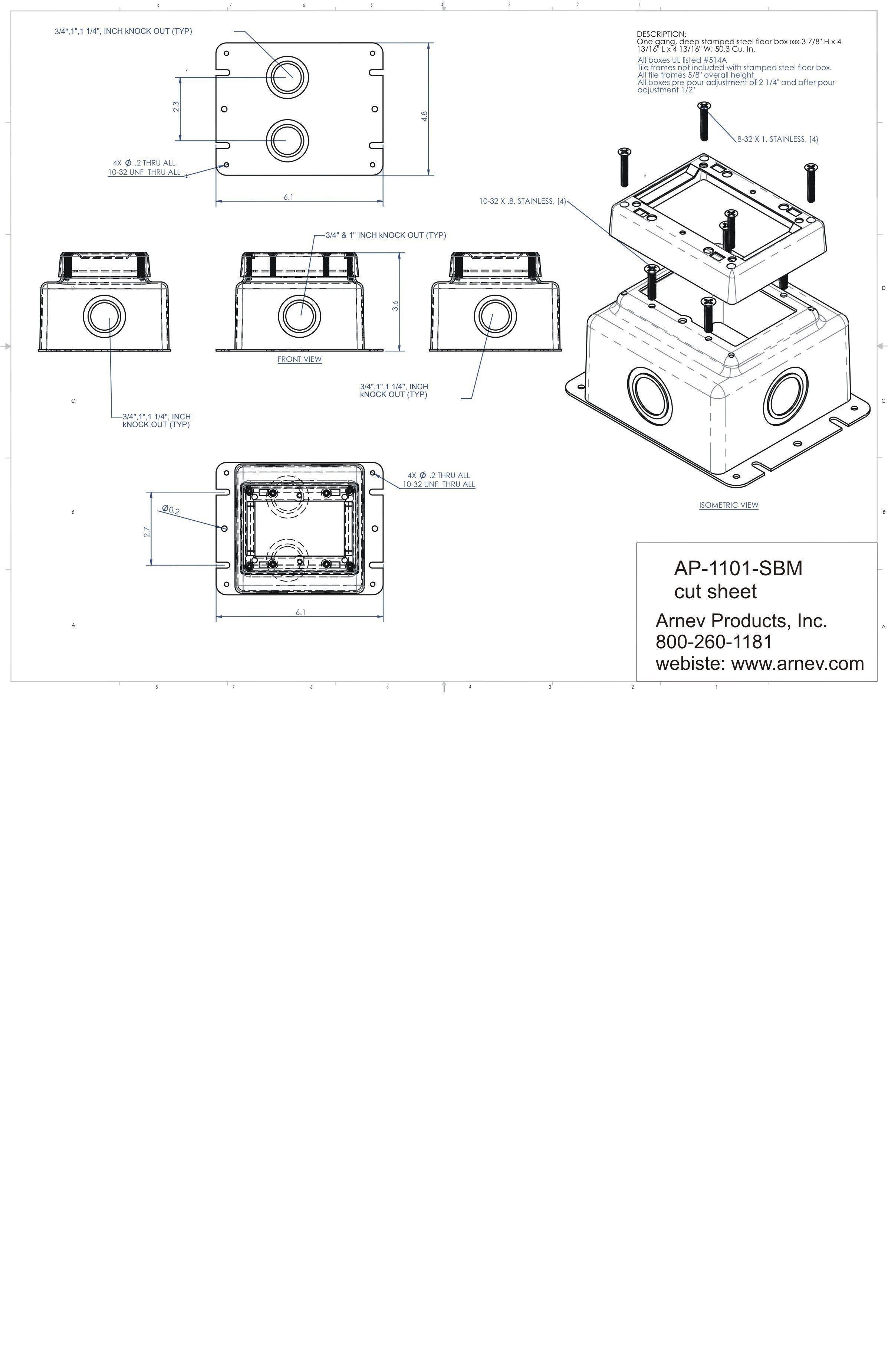

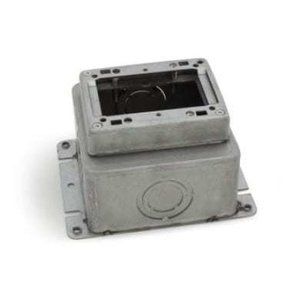

AP-1101-SMB A One gang, deep stamped steel floor box. Dimensions: 3 7/8″ H x 4 13/16″ L x 4 13/16″ W; 50.3 Cu. in. Fully adjustable with a screwdriver offering 2 1/4″ of pre-pour adjustment and 1/2″ of post-pour adjustment. With a protective cement cap to keep the floor box clean and safe during concrete pouring. Do not ship with a cover, but there are several options available that are sold separately. If the box is to be used in a carpeted area, use a carpet flange.

For Low voltage devices (CAT5-6, Tel, CTV, etc.) Click Here

Tile Frame (for tile floors)

Click on the image to order

One gang, brass, or aluminum tile frame
Dim: 4 5/16? L x 3 11/32? W

Carpet Flange (for carpeting)

Click on the image to order

Single Gang Brass or Aluminum Carpet Flange,

5 11/32? X 6 1/4?

These are the available covers needed for these boxes, so click on the cover you would like to order.

Click on the picture to take you to that product's page to order.

AP-6304-DFB-1 Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-DFB-1-GFI Floor Box Cover Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Decora receptacles	AP-6304-DFB-1- TEL. for Com/Data. Available in both Brass and Aluminum	AP-6304-DFB-LR Floor Box Cover Dual Hinged 2 7/8'' X 3 7/8'' Cover (1/4'' Thick) for Duplex	AP-6304-S Brass only Floor Box Cover Cover (1/8'' Thick) with 2'' - 1/2'' Combo Plug for Comm./data.
AP-6304-DP Floor Box Cover (1/8'' Thick) with (2) 1 1/2'' Screw Plugs for Duplex
